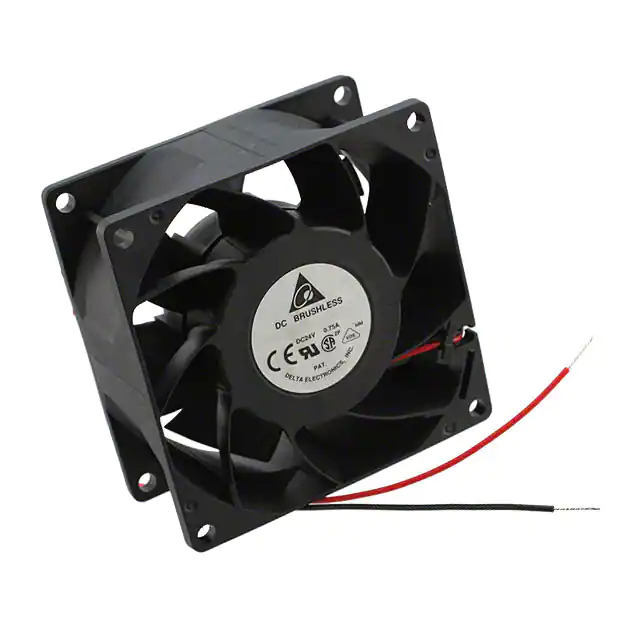

FFB0824EHE Delta Electronics
Same model may have multiple batches, images only for reference.

FFB0824EHE

Part No FFB0824EHE
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 80X38MM 24VDC WIRE
Datasheet
FFB0824EHE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series FFB
Package Bulk
Product Status Active
Voltage - Rated 24VDC
Size / Dimension Square - 80mm L x 80mm H
Width 38.00mm
Air Flow 80.2 CFM (2.25m³/min)
Static Pressure 0.812 in H2O (202.3 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 52.5dB(A)
Power (Watts) 12 W
RPM 5700 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.375 lb (170.1 g)
Current Rating (Amps) 0.500A
Voltage Range 14 ~ 26.4VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number FFB0824
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368405-FFB0824EHE
Ultra Librarian 3D Model Ultra Librarian FFB0824EHE CAD Model

Description

The FFB0824EHE is an 80mm square DC brushless fan from Delta Electronics.

  • Voltage: 24VDC
  • Current: 0.500A
  • Power: 12W
  • Maximum Noise Level: 52.5dB(A)
  • Lifetime: 70,000 hours @ 40°C
  • Operating Temperature: 14°F to 158°F (-10°C to 70°C)
  • Series: FFB
  • Packaging: Bulk
  • Protection: Locked Rotor Protection
  • Bearing Type: Ball
  • Approvals: CE, CSA, UL, and VDE
  • Application: Thermal Management
