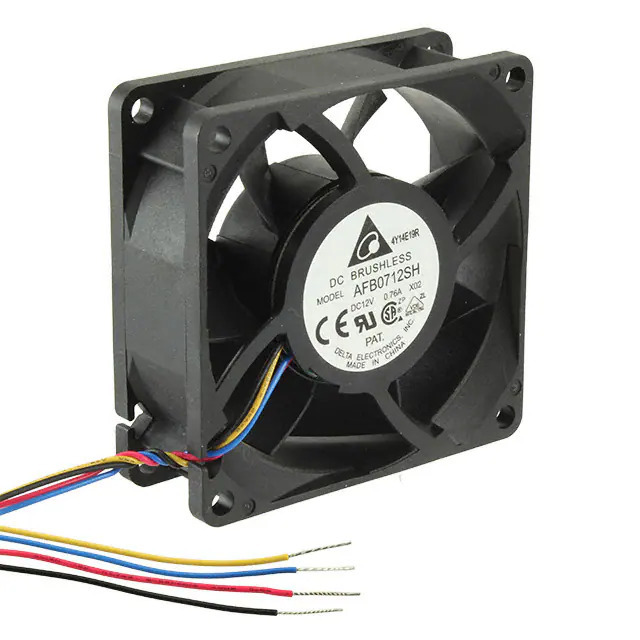

AFB0712SHX02 Delta Electronics
Same model may have multiple batches, images only for reference.

AFB0712SHX02

Part No AFB0712SHX02
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 70X25.4MM 12VDC WIRE
Datasheet
AFB0712SHX02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Bulk
Product Status Active
Voltage - Rated 12VDC
Size / Dimension Square - 70mm L x 70mm H
Width 25.40mm
Air Flow 61.1 CFM (1.71m³/min)
Static Pressure 0.625 in H2O (155.7 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Noise 50.5dB(A)
Power (Watts) 7.8 W
RPM 6300 RPM
Termination 4 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.199 lb (90.26 g)
Current Rating (Amps) 0.650A
Voltage Range 5 ~ 13.8VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0712
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368398-AFB0712SHX02
Ultra Librarian 3D Model Ultra Librarian AFB0712SHX02 CAD Model

Description

The 1368398-AFB0712SHX02 is a 70mm DC brushless fan manufactured by Delta Electronics.

  • Series: AFB
  • Package: Bulk
  • Temperature Range: 14°F to 158°F (-10°C to 70°C)
  • Rated Voltage: 12VDC
  • Current Rating: 0.650A
  • Size: 70mm L x 70mm H
  • Maximum Air Flow: 61.1 CFM (1.71m³/min)
  • Static Pressure: 0.625 in H2O (155.7 Pa)
  • Noise Level: 50.5dB(A)
  • Lifetime: 70000 hours @ 40°C
  • Protection: Locked Rotor Protection
  • Control: PWM Control
  • Sensor: Speed Sensor (Tach)
