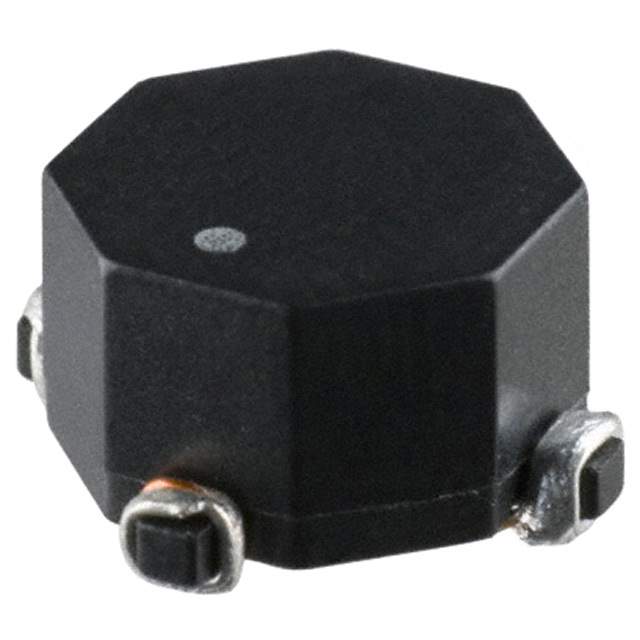

CMS2-2-R Real Image
Same model may have multiple batches, images only for reference.

CMS2-2-R

Part No CMS2-2-R
Manufacturer Eaton Bussmann
Catalog Common Mode Chokes
Description CMC 40UH 4.4A 2LN SMD / 40 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 4.4A DCR 8mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Eaton - Electronics Division
Series CMS
Package Tape & Reel
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 40 µH @ 100 kHz
Current Rating (Max) 4.4A
DC Resistance (DCR) (Max) 8mOhm (Typ)
Temperature Range - Operating -40°C ~ 160°C
Mounting SMD (SMT)
Dimension 0.350" L x 0.350" W (8.90mm x 8.90mm)
Height (Max) 0.236" (6.00mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names CMS22R,513-1687-6,CMS2-2,CMS2-2-R-ND,CMS2-2-ND,513-1687-1,513-1687-2
Standard Package 800
Win Source Part Number 1216677-CMS2-2-R
Ultra Librarian 3D Model Ultra Librarian CMS2-2-R CAD Model

Description

The CMS2-2-R is a common mode choke from Eaton - Electronics Division.

  • Height: 0.236" (6.00mm)
  • Dimension: 0.350" L x 0.350" W (8.90mm x 8.90mm)
  • Package: 800 (Standard)
  • Operating Temperature (Max): 160°C
  • Alternative Part: CMS22R
