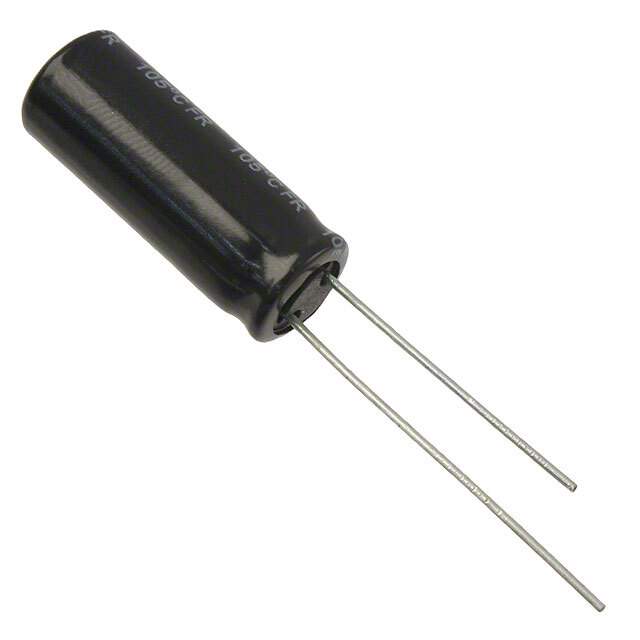

Same model may have multiple batches, images only for reference.

EEU-FR1E471L

Name: EEU-FR1E471L
Brand: Panasonic
SKU: 773678
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEU-FR1E471L
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 470UF 20% 25V RADIAL / Cap Aluminum Lytic 470uF 25V 20% (8 X 20mm) Radial 3.5mm 1560mA 9000h 105°C Bulk
Datasheet	EEU-FR1E471L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Panasonic Electronic Components
Series	FR
Packaging	Bulk
Capacitance	470μF
Tolerance	±20%
Voltage Rating DC	25V
Lifetime @ Temp.	9000 Hrs @ 105°C
Operating Temperature Range	-40°C ~ 105°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	1.17A @ 120Hz
Ripple Current - High Frequency	1.56A @ 100kHz
Impedance	30 mOhm
Lead Spacing	0.138" (3.50mm)
Dimension	0.315" Dia (8.00mm)
Height - Seated (Maximum)	0.866" (22.00mm)
Mounting Style	Through Hole
Package	Radial, Can
Win Source Part Number	773678-EEU-FR1E471L
Popularity	Medium
Supply and Demand Status	Limited
Family Name	FR
Introduction Date	April 14, 2010
ECCN	EAR99
Country of Origin	Malaysia
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian EEU-FR1E471L CAD Model

Description

Panasonic Electronic Components EEU-FR1E471L is a radial, can type capacitor.

Series: FR
Capacitance: 470μF
Tolerance: ±20%
Lead Spacing: 0.138" (3.50mm)
Polarity: Polar
Maximum Height: 0.866" (22.00mm)
Voltage Rating DC: 25V
Ripple Current: 1.17A @ 120Hz (low frequency), 1.56A @ 100kHz (high frequency)
Applications: General
Lifetime: 9000 hours @ 105°C
Popularity: Medium
