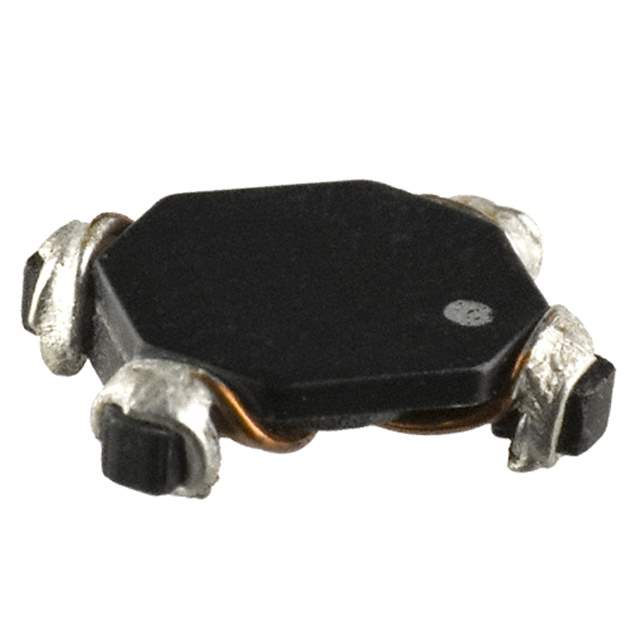

CMS1-12-R Real Image
Same model may have multiple batches, images only for reference.

CMS1-12-R

Part No CMS1-12-R
Manufacturer Eaton Bussmann
Catalog Common Mode Chokes
Description CMC 131UH 1.15A 2LN SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 18 Weeks
Features 2 Line Common Mode Choke Surface Mount 1.15A DCR 100mOhm (Typ)
Manufacturer Eaton Bussmann
Series CMS
Package Reel - TR
Operating Temperature Range -40°C ~ 160°C
Mounting Surface Mount
Package Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number CMS1-12-R-ND, CMS112R, 513-1683-1, 513-1683-2, CMS1-12, CMS1-12-ND, 513-1683-6
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 915629-CMS1-12-R
Ultra Librarian 3D Model Ultra Librarian CMS1-12-R CAD Model

Description

The Eaton Bussmann electronic component with Win Source Part Number 915629-CMS1-12-R is a common mode choke surface mount that features 2 lines, 1.15A DCR 100mOhm (Typ), and a horizontal, 4 PC pad package.

  • Type: Common Mode Choke
  • Mounting Type: Surface Mount
  • Lines: 2
  • Current: 1.15A
  • DCR: 100mOhm (Typ)
  • Package: Horizontal, 4 PC pad
  • Package Format: Reel - TR
  • Popularity: High
  • Manufacturer: Eaton Bussmann
