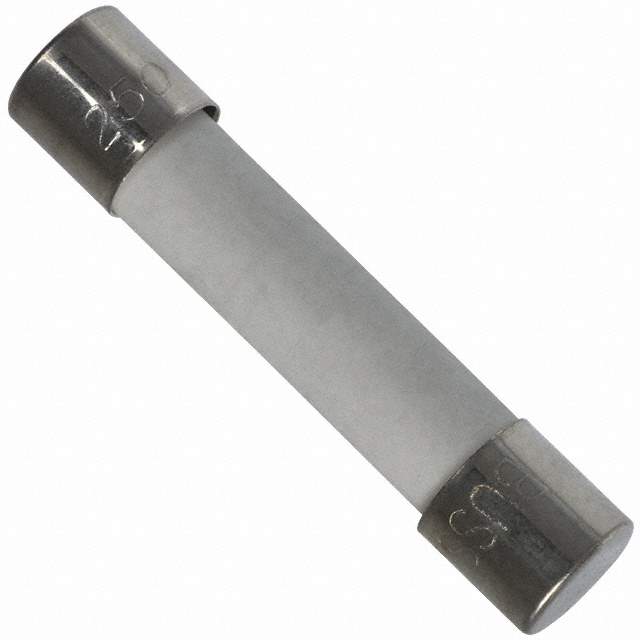

BK/ABC-5-R Real Image
Same model may have multiple batches, images only for reference.

BK/ABC-5-R

Part No BK/ABC-5-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE CERM 5A 250VAC 125VDC 3AB
Datasheet
BK/ABC-5-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton
Series ABC
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating 5A
Voltage Rating - AC 250V
Voltage Rating - DC 125V
Response Time Fast
Package 3AB, 3AG, 1/4" x 1-1/4"
Mounting Holder
Breaking Capacity @ Rated Voltage 200A AC, 10kA DC
Melting I2t 32.83
Approvals CSA, UL
Dimension 0.250" Dia x 1.250" L (6.35mm x 31.75mm)
Resistance 0.026 Ohm
Win Source Part Number 766871-BK/ABC-5-R
Popularity Medium
Supply and Demand Status Balance
Family Name ABC
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian BK/ABC-5-R CAD Model

Description

The Eaton ABC series 5A fast-acting ceramic cartridge fuse is a reliable and efficient circuit protection solution.

  • Series: ABC
  • Fuse Type: Ceramic Cartridge
  • Current: 5A
  • Action: Fast Acting
  • Voltage Rating: 250V AC, 125V DC
  • Breaking Capacity: 200A AC, 10kA DC @ Rated Voltage
  • Resistance: 0.026 Ohm
  • Melting I2t: 32.83
  • Packaging: Bulk
  • Package Size: 3AB, 3AG, 1/4" x 1-1/4"
  • Approvals: CSA, UL
  • Mounting: Holder
  • Halogen Free: Yes
  • ECCN: EAR99
  • Estimated EOL Date: 2025
