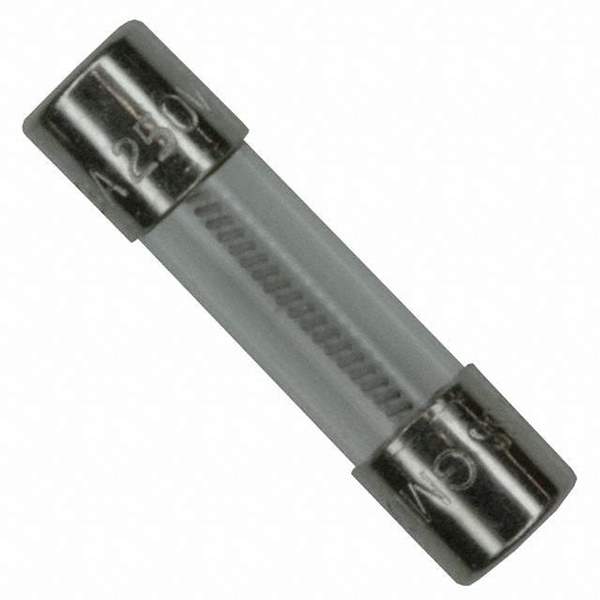

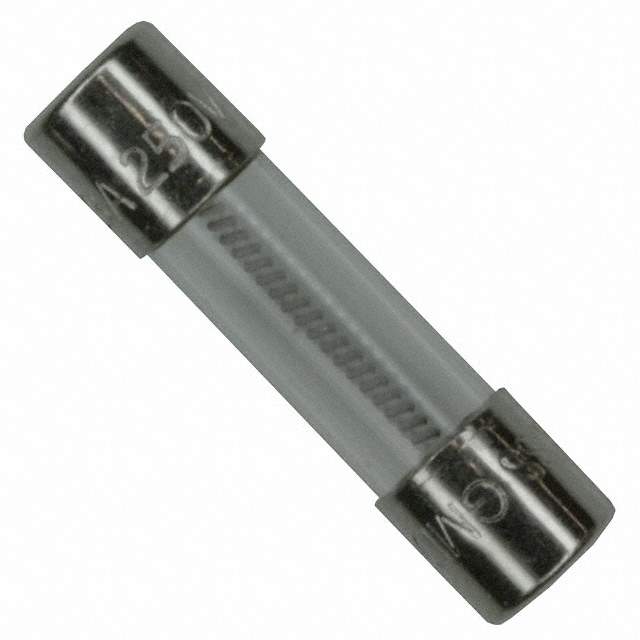

BK/GMD-600-R Real Image
Same model may have multiple batches, images only for reference.

BK/GMD-600-R

Part No BK/GMD-600-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE GLASS 600MA 250VAC 5X20MM / 600 mA 250 V AC DC Fuse Cartridge, Glass Holder 5mm x 20mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Eaton - Electronics Division
Series GMD
Package Bulk
Mounting Type Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 600 mA
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 35A
Melting I2t 3.1
Approval Agency CSA, UL
Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.948 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0020
Other Names 283-3345,BK-GMD-600-R,BK/GMD-600-R-ND,BK/GMD600R
Standard Package 100
Win Source Part Number 1009155-BK/GMD-600-R
Ultra Librarian 3D Model Ultra Librarian BK/GMD-600-R CAD Model

Description

The Eaton - Electronics Division 1009155-BK/GMD-600-R is a cartridge glass fuse that belongs to the circuit protection category.

  • Current Rating: 600mA
  • Voltage Rating: 250V AC
  • Fuse Type: slow blow
  • Breaking Capacity: 35A
  • Melting I2t: 3.1
  • Standard Package: 100
  • Mounting: holder
  • Approvals: CSA and UL
