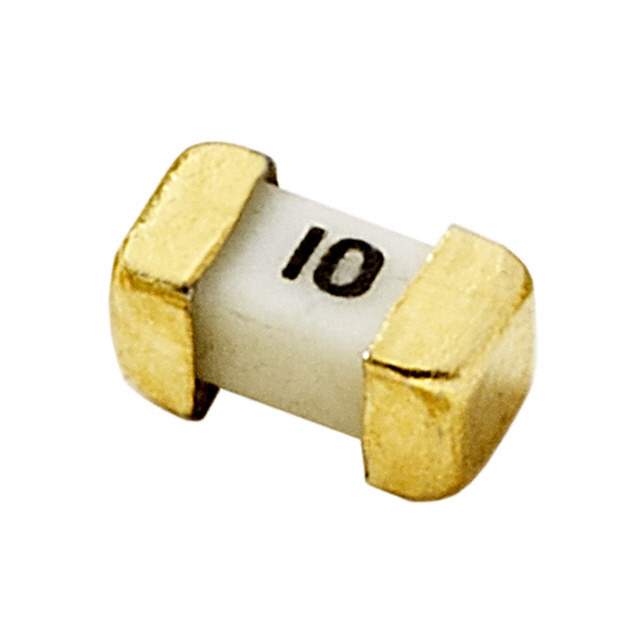

0458005.DR Real Image
Same model may have multiple batches, images only for reference.

0458005.DR

Part No 0458005.DR
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BRD MNT 5A 32VAC 75VDC 1206
Datasheet
0458005.DR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 5A
Voltage Rating - AC 32V
Voltage Rating - DC 75V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 50A
Nominal Melting - I2t 7.938
Approvals cULus
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.027 Ohm
Win Source Part Number 1000166-0458005.DR
Family Name 458
Introduction Date September 18, 2008
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 0458005.DR CAD Model

Description

The 0458005.DR is a board mount fuse manufactured by Littelfuse Inc.

  • Category: Circuit Protection
  • Current Rating: 5A
  • Voltage Rating: 32V AC and 75V DC
  • Response Time: Fast
  • Breaking Capacity @ Rated Voltage: 50A
  • Mounting: SMD (SMT)
  • Temperature Range: -55°C to 125°C
  • Popularity: High
  • Supply and Demand Status: Sufficient
  • Compliance: Halogen-Free
