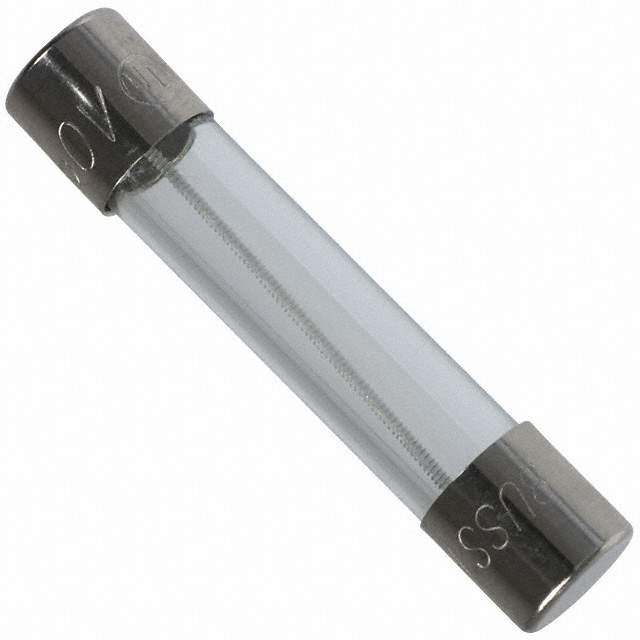

BK/MDL-2 Real Image
Same model may have multiple batches, images only for reference.

BK/MDL-2

Part No BK/MDL-2
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE GLASS 2A 250VAC 3AB 3AG / 2 A 250 V AC DC Fuse Cartridge, Glass Holder 3AB, 3AG, 1/4" x 1-1/4"
Datasheet
BK/MDL-2 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Eaton - Electronics Division
Series MDL
Package Bulk
Product Status Obsolete
Mounting Type Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 2 A
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case 3AB, 3AG, 1/4" x 1-1/4"
Breaking Capacity @ Rated Voltage 100A
Melting I2t 62.3
Approval Agency CSA, UL
Dimension 0.250" Dia x 1.250" L (6.35mm x 31.75mm)
DC Cold Resistance 0.173 Ohms
RoHS Status RoHS non-compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.10.0020
Other Names 283-2182,BK-MDL-2,MDL-2
Standard Package 100
Win Source Part Number 1073939-BK/MDL-2
Ultra Librarian 3D Model Ultra Librarian BK/MDL-2 CAD Model

Description

The MDL-2 glass cartridge fuse is a perfect fit for circuit protection applications.

  • Voltage Rating: 250 V
  • Response Time: slow blow
  • Breaking Capacity @ rated voltage: 100A
  • DC Cold Resistance: 0.173 Ohms
  • Fuse Type: cartridge glass
  • Package: bulk
  • Mounting Type: holder
  • Package/Case: 3AB, 3AG, 1/4" x 1-1/4"
  • Dimension: 0.250" Dia x 1.250" L (6.35mm x 31.75mm)
  • Product Status: obsolete
  • RoHS Status: non-compliant
  • Approvals: CSA and UL
