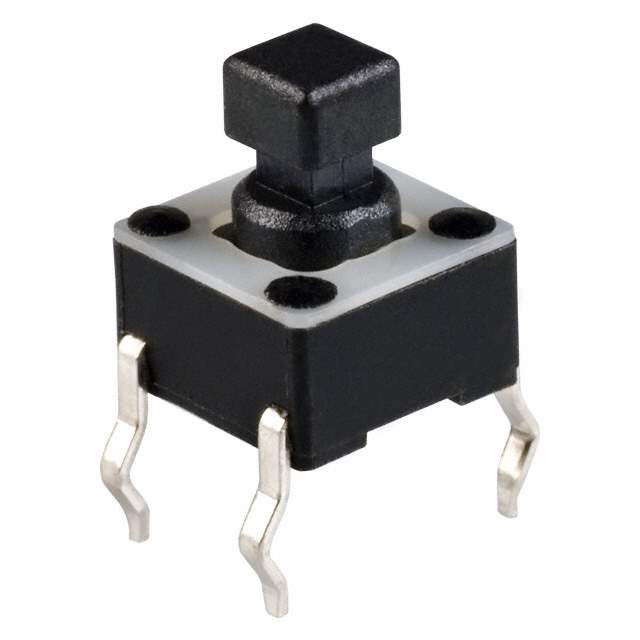

TL1105SPF160Q Real Image
Same model may have multiple batches, images only for reference.

TL1105SPF160Q

Part No TL1105SPF160Q
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V  /  Tactile Switch SPST-NO Top Actuated Through Hole
Datasheet
TL1105SPF160Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr E-Switch
Series TL1105
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Plunger for Cap
Mounting Type Through Hole
Actuator Height off PCB, Vertical 7.50mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Operating Force 160gf
Temperature Range - Operating -20°C ~ 70°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Base Product Number TL1105
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names P010201,Q6050938,EG1861,TL1105SP-F160Q
Standard Package 750
Win Source Part Number 1187816-TL1105SPF160Q
Ultra Librarian 3D Model Ultra Librarian TL1105SPF160Q CAD Model

Description

This electronic component is a switch belonging to the Tactile Switches category.

  • Win Source Part Number: 1187816-TL1105SPF160Q
  • Series: TL1105
  • Termination Style: PC Pin
  • Actuator Type: Plunger for cap
  • Switch Function: Off-Mom
  • Circuit: SPST-NO
  • Package: Bulk
  • Mounting Type: Through Hole
  • Mechanical Life: 100,000 cycles
  • REACH Status: REACH Unaffected
