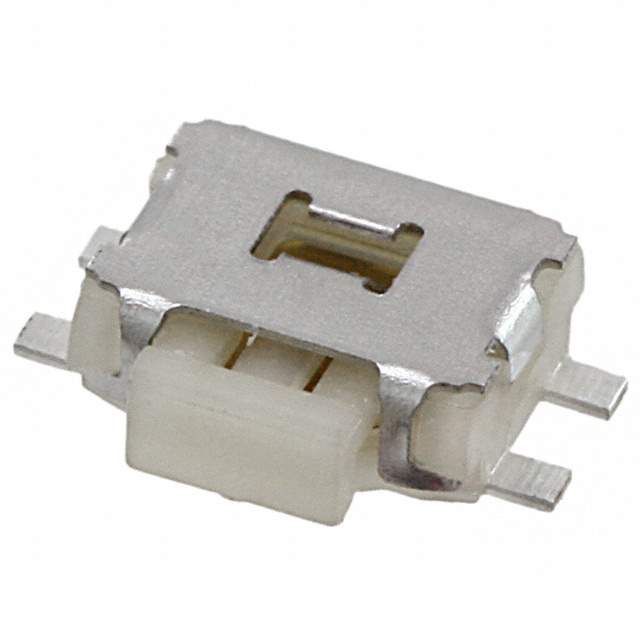

TL1014AF160QG Real Image
Same model may have multiple batches, images only for reference.

TL1014AF160QG

Part No TL1014AF160QG
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 15 Weeks
Features Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
Manufacturer E-Switch
Series TL1014
Package Reel - TR
Operating Temperature Range -20°C ~ 70°C
Mounting Surface Mount, Right Angle
Family Name TL1014
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Part Number EG5043DKR, EG5043TR, EG5043CT
Quantity per package 3300
Popularity High
Supply and Demand Status Balance
Win Source Part Number 899740-TL1014AF160QG
Ultra Librarian 3D Model Ultra Librarian TL1014AF160QG CAD Model

Description

The TL1014AF160QG is a tactile switch with SPST-NO configuration.

  • Actuation: Side actuated
  • Mounting: Surface mounted @ a right angle
  • Manufacturer: E-Switch
  • Series: TL1014
  • Operating Temperature: -20°C to 70°C
  • Packaging: Reel
  • Quantity per Package: 3300
  • Popularity: High
  • Supply and Demand Status: Balance
  • ECCN: EAR99 compliant
  • REACH: No REACH restrictions
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 15 weeks
  • HTSUS: 8536.50.9031 compliant
  • Other part numbers: EG5043DKR, EG5043TR and EG5043CT
