Same model may have multiple batches, images only for reference.

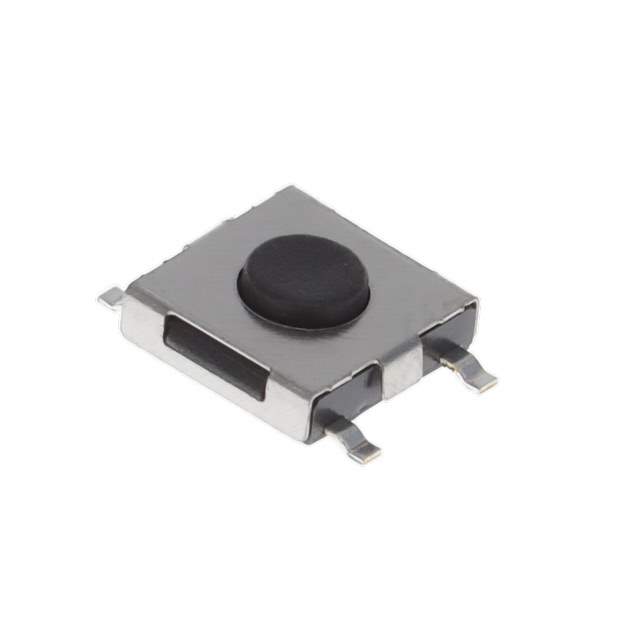

TL3313AF250QG Real Image
Same model may have multiple batches, images only for reference.

TL3313AF250QG

Part No TL3313AF250QG
Manufacturer E-Switch
Catalog Tactile Switches
Description SUB-MINIATURE TACTILE | SWITCH TACTILE SPST-NO 0.05A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer E-Switch
Packaging Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating at Voltage 0.05A at 12VDC
Actuator Type Standard
Mounting Style SMD
Actuator Height off PCB, Vertical 1.50mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 4.80mm x 4.80mm
Illumination Non-Illuminated
Operating Force 250gf
Temperature Range - Operating -20°C ~ 70°C
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1268192-TL3313AF250QG
Manufacturer Homepage www.e-switch.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TL3313AF250QG CAD Model

Description

The TL3313AF250QG is a SPST-NO switch manufactured by E-Switch.

  • Mounting Style: SMD
  • Termination Style: Gull Wing
  • Actuator Type: Standard
  • Switch Function: Off-Mom
  • Actuator Orientation: Top actuated
  • Switch Travel: 0.25mm
  • Mechanical Life: 100,000 cycles
  • Operating Force: 250gf
  • Illumination Type: Non-illuminated
  • Illumination Color: non-illuminated
  • Manufacturer Homepage: www.e-switch.com
  • Win Source Part Number: 1268192-TL3313AF250QG
