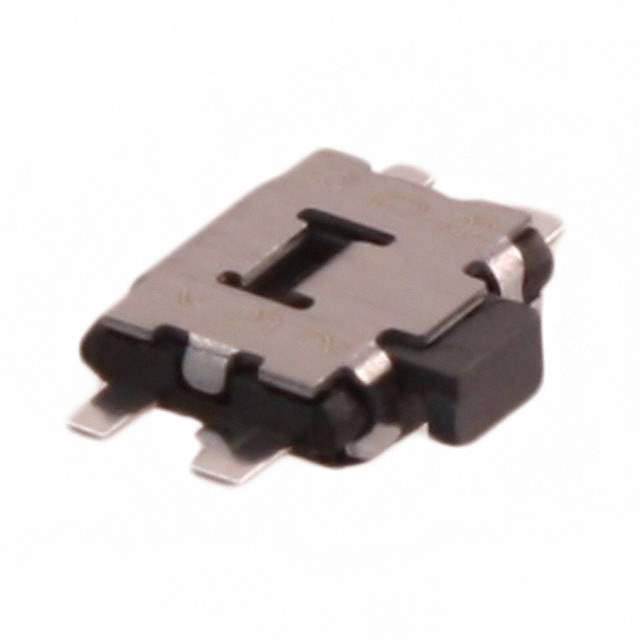

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr Panasonic Electronic Components
Series EVPAN
Package Tape & Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Rectangular Button
Mounting Type Surface Mount, Right Angle
Actuator Orientation Side Actuated
Termination Style SMD (SMT) Tab
Outline 5.20mm x 2.90mm
Illumination Non-Illuminated
Operating Force 220gf
Temperature Range - Operating -20°C ~ 70°C
Switch Travel 0.20mm
Mechanical Life 100,000 Cycles
Base Product Number EVP-AN
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Other Names EVPANDA1A,P15498CT,P15498TR,P15498DKR
Standard Package 7,000
Win Source Part Number 958096-EVP-ANDA1A
Ultra Librarian 3D Model Ultra Librarian EVP-ANDA1A CAD Model

Description

The EVPAN series from Panasonic Electronic Components is a surface-mount, right-angle tactile switch.

  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Button Actuator: Rectangular
  • Switch Travel: 0.20mm
  • Operating Force: 220gf
  • Contact Rating: 0.05A @ 12VDC
  • Mechanical Life: 100,000 cycles
  • Packaging: Tape and Reel
  • Standard Package: 7,000
  • Illumination: No
  • Ingress Protection: -
