Introducing the PI3DPX1205AZLBEX from Diodes Incorporated

The PI3DPX1205AZLBEX is a state-of-the-art, high-performance digital switch designed by Diodes Incorporated, a leading global manufacturer and supplier of high-quality application-specific standard products. This innovative product is specifically engineered to meet the demanding requirements of high-speed signal switching applications, making it an excellent choice for a range of consumer electronics, computing devices, and communication systems.

The PI3DPX1205AZLBEX is part of the ReDriver™ series, which are known for their ability to enhance signal integrity by performing receive equalization on deteriorated input signal followed by transmit de-emphasis, maximizing system performance. This particular model is a 4-differential channel, 2-to-1 multiplexer/demultiplexer switch that supports high-speed protocols such as PCIe 3.0, SATA 3.0, and USB 3.2 Gen 1.

Key features of the PI3DPX1205AZLBEX include:

• Support for 8.0Gbps PCIe 3.0, 6.0Gbps SATA 3.0, and 5.0Gbps USB 3.2 Gen 1 signaling.
• Low power consumption, making it an energy-efficient choice for modern electronic devices.
• Advanced signal conditioning capabilities that enable longer cable and PCB trace lengths.
• Programmable equalization and de-emphasis to optimize performance over a variety of physical mediums.

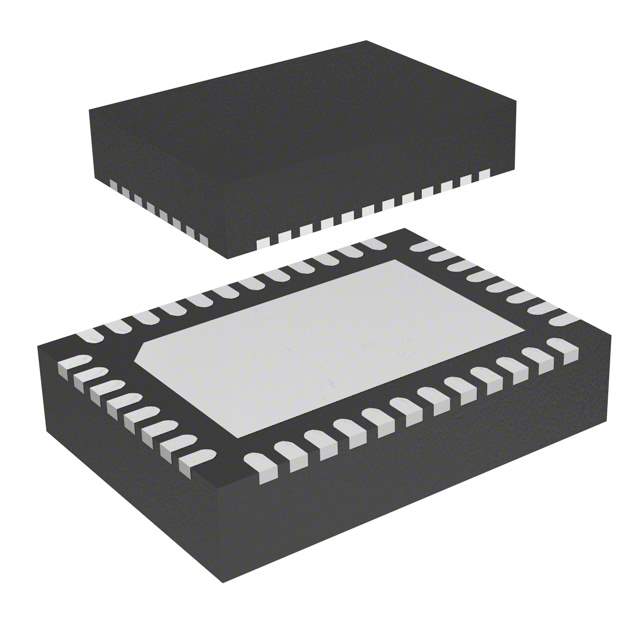

• Small form factor with a 42-contact TQFN (ZL) package, which is ideal for space-constrained applications.
• Integrated Electrostatic Discharge (ESD) protection circuitry, safeguarding the device from potential damage due to static discharge.

With its robust design and exceptional performance characteristics, the PI3DPX1205AZLBEX is particularly suitable for applications such as desktop and laptop computers, servers, workstations, docking stations, and high-performance gaming consoles. Its ability to enhance signal integrity and extend signal reach makes it a critical component for ensuring reliable high-speed data transmission.

Diodes Incorporated's commitment to quality and reliability is evident in the PI3DPX1205AZLBEX, which is built to meet the stringent requirements of today's most advanced digital systems. Integrating this switch into your product design will ensure that you are delivering a high-speed, high-reliability solution to your customers.
