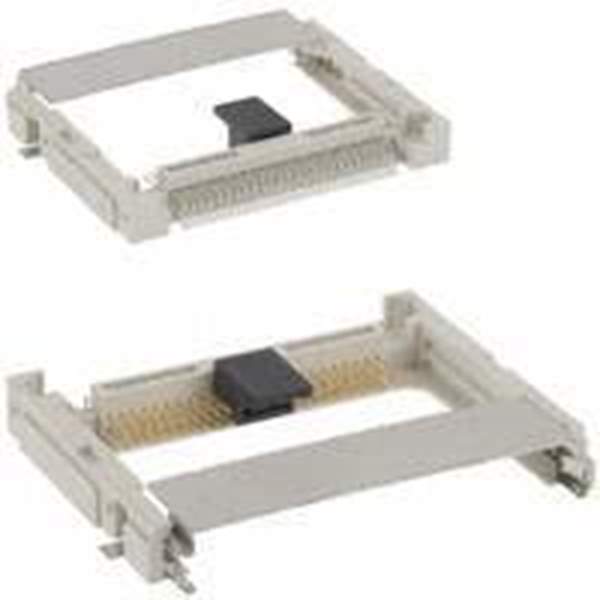

N7E50-M516RA-40-WF 3M
Same model may have multiple batches, images only for reference.

N7E50-M516RA-40-WF

Part No N7E50-M516RA-40-WF
Manufacturer 3M
Catalog Memory Connectors - PC Card Sockets
Description CONN COMPACT FLASH CARD R/A SMD
Datasheet
N7E50-M516RA-40-WF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Description

  • Headers mate with both CompactFlash™ Type I and Type II cards
  • Polarization optionsfor top or bottom boardmount
  • Extended guide rails enable accurate and easy card insertion
  • Single row surface mountsolder tailsfacilitate auto placement and IR soldering
  • Optional 2 mm board standoff enables board population
  • Meets CFAstandardsfor known compatibility and reliability
  • Metal brace providesstability for ejector attachment
  • Multiple styles of ejector available
  • Optional ejector can be purchased pre-assembled or separately
  • Optional Tape and Reel or Tray packaging for automated assembly
  • See the Regulatory InformationAppendix (RIA) in the “RoHS compliance” section of www.3Mconnector.com for compliance information (RIA E1 & C1 apply)
