Introducing the AP2191DFMG-7 from Diodes Incorporated

The AP2191DFMG-7 is a cutting-edge, single-channel current-limited integrated high-side power switch from Diodes Incorporated, tailored for USB and other hot-swap applications. This compact, feature-rich device is designed to operate from 2.7V to 5.5V, making it suitable for a wide range of low-voltage applications.

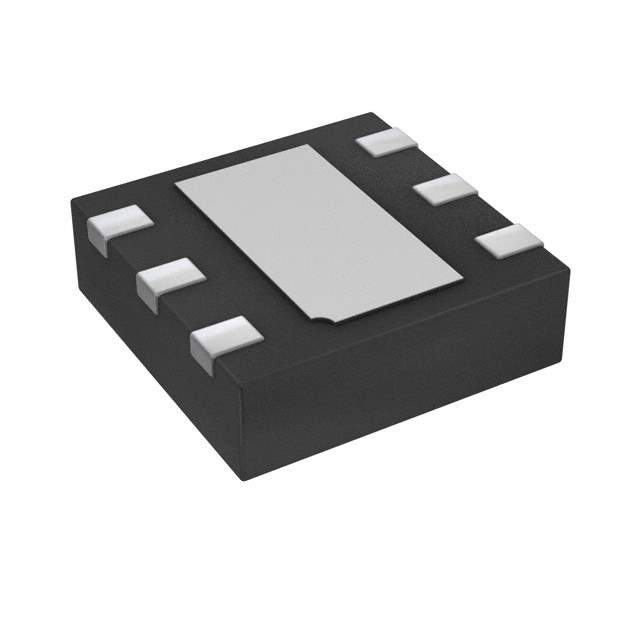

Encased in a space-saving DFN2020-6 package, the AP2191DFMG-7 is engineered to provide a load current of 1A, which is ideal for managing USB peripherals. Its built-in current limiting function helps safeguard the host device from overcurrent conditions, enhancing system reliability and user safety. The fast response time of the AP2191DFMG-7 to fault conditions further contributes to the protection of the circuit by minimizing the impact of short circuits and overcurrent events.

The device boasts an array of features designed to improve system performance and reliability. It includes thermal shutdown protection, which prevents damage from overheating by automatically turning off the power switch if the junction temperature exceeds the thermal shutdown threshold. Once the device cools down, it will automatically restart, ensuring continued operation without user intervention.

Moreover, the AP2191DFMG-7 is equipped with under-voltage lockout (UVLO), which ensures that the power switch remains off when the input voltage is below a certain threshold. This feature prevents erratic operation that can occur when the supply voltage falls to an inadequate level. Additionally, the product features a controlled rise time to minimize inrush current, further protecting downstream components from potential damage.

For design flexibility, the AP2191DFMG-7 offers an active high enable input, which allows the power switch to be controlled by other logic signals within the system. This enables designers to integrate the device seamlessly into a wide range of applications.

In summary, the AP2191DFMG-7 from Diodes Incorporated is a robust, high-performance power switch solution that offers current limiting, thermal shutdown, under-voltage lockout, and controlled rise time features. Its compact form factor and wide operating voltage range make it an excellent choice for USB power management and other hot-swap applications.
