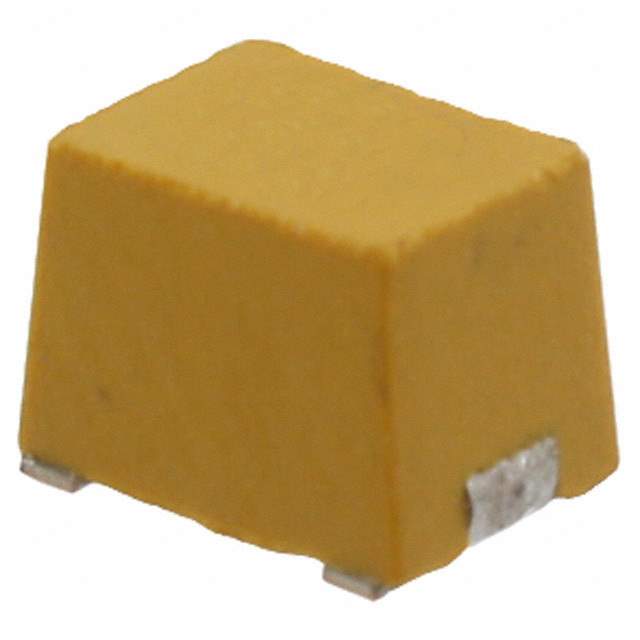

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vishay Dale
Series IMC-1812
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 10 µH
Tolerance ±10%
Current Rating (Amps) 250 mA
Shielding Unshielded
DC Resistance (DCR) 1.6Ohm Max
Q @ Freq 50 @ 2.52MHz
Frequency - Self Resonant 20MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 2.52 MHz
Mounting SMD (SMT)
Package / Case 1812 (4532 Metric)
Supplier Device Package 1812
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) 0.134" (3.40mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names IMC1812ER100K-ND,541-1589-6,541-1589-2,541-1589-1
Standard Package 500
Win Source Part Number 1064996-IMC1812ER100K
Ultra Librarian 3D Model Ultra Librarian IMC1812ER100K CAD Model

Description

The Vishay Dale IMC-1812 is a fixed inductor designed for use in various electronic devices.

  • Inductance: 10 µH
  • Tolerance: ±10%
  • Height: 0.134" (3.40mm)
  • Packaging: Tape & reel
  • Standard Package: 500
  • Mounting: SMD (SMT)
  • Q @ Freq: 50 @ 2.52MHz
  • Frequency - Self-Resonant: 20MHz
  • DC Resistance (DCR): 1.6Ohm Max
  • Temperature Range: -55°C to 125°C
  • Alternative parts: CM453232-100KL, AISM-1812-100K-T, CB2012T100KRV, CB2012T100KV, and CB2016T100KV
