CC-SBP-WMX-JN58

Part No CC-SBP-WMX-JN58
Manufacturer Digi International
Catalog Embedded - Single Board Computers (SBCs)

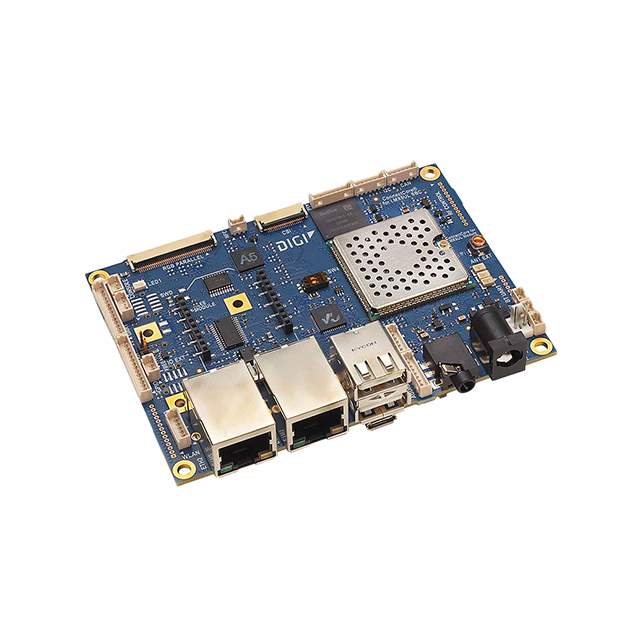

Description CONNECTCORE 6UL SBC PRO, I.MX6UL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Embedded Computers - Single Board Computers (SBCs)
Mfr Digi
Series ConnectCore® 6UL
Package Tray
Core Processor ARM® Cortex®-A7, i.MX6Ultralite
Speed 528MHz
Number of Cores 1
Size / Dimension 2.830" x 3.940" (71.88mm x 100.07mm)
Form Factor Pico-ITX
Expansion Site/Bus CAN, GPIO, I²C, SPI, UART
RAM Capacity/Installed 256MB/256MB
Storage Interface microSD
Video Outputs LVDS, RGB
Ethernet 10/100Mbps (2)
USB USB 2.0 (3) , USB 2.0 OTG (1)
RS-232 (422, 485) 2
Digital I/O Lines 8
Temperature Range - Operating -40°C ~ 85°C
Base Product Number CC-SBP
Standard Package 5
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
California Prop 65 Warning Information
Win Source Part Number 1337346-CC-SBP-WMX-JN58
Ultra Librarian 3D Model Ultra Librarian CC-SBP-WMX-JN58 CAD Model

Description

The ConnectCore® 6UL is a Single Board Computer (SBC) from the Digi series.

  • Core Processor: ARM® Cortex®-A7, i.MX6Ultralite
  • Speed: 528MHz
  • RAM Capacity: 256MB
  • Storage Interface: microSD
  • Video Outputs: LVDS, RGB
  • Ethernet: 10/100Mbps
  • USB: USB 2.0 (3), USB 2.0 OTG (1)
  • Serial Interfaces: 2 RS-232 (422, 485)
  • Number of I/O: -
  • Operating Temperature: -40°C ~ 85°C
  • Expansion Site/Bus: CAN, GPIO, I²C, SPI, UART
  • Form Factor: Pico-ITX
