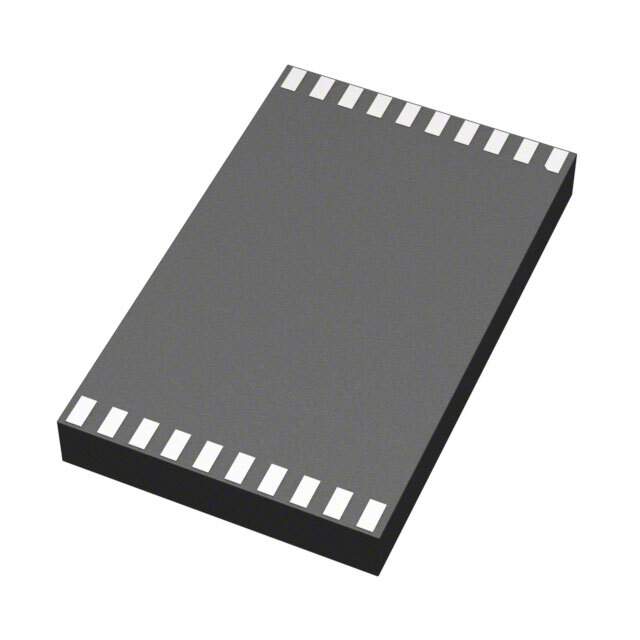

The ADE1201ACCZ is a highly integrated, multifunctional power measurement IC designed by Analog Devices Inc., a leader in high-performance semiconductors for signal processing applications. This advanced chip is specifically engineered for accurate and reliable measurement of active energy (kWh), apparent energy (VAh), and other power quality parameters, making it a perfect solution for a wide range of energy monitoring applications.

Key Features

• High-precision energy measurement with less than 0.1% error over a dynamic range of 1000:1
• On-chip power supply quality monitoring for Voltage, Current, and Power Factor
• Integrated Oscillator and reference source, reducing the need for external components
• Support for both single-phase and poly-phase energy metering systems
• Digital calibration, which facilitates easy system-level calibration and reduces time to market
• Robust serial communication interfaces for easy integration with microcontrollers

Applications

The ADE1201ACCZ is ideal for a variety of applications where precise energy measurement is critical. These include:

• Residential and commercial energy meters
• Smart power distribution systems
• Renewable energy systems, such as solar inverters
• Industrial automation and control systems
• Energy management and monitoring systems

Technical Specifications

With its combination of precision, integration, and ease of use, the ADE1201ACCZ from Analog Devices Inc. is an outstanding choice for designers looking to enhance energy measurement in their next project. Its robust feature set and flexible application scope make it a versatile component that can meet the requirements of a broad array of power monitoring tasks.
