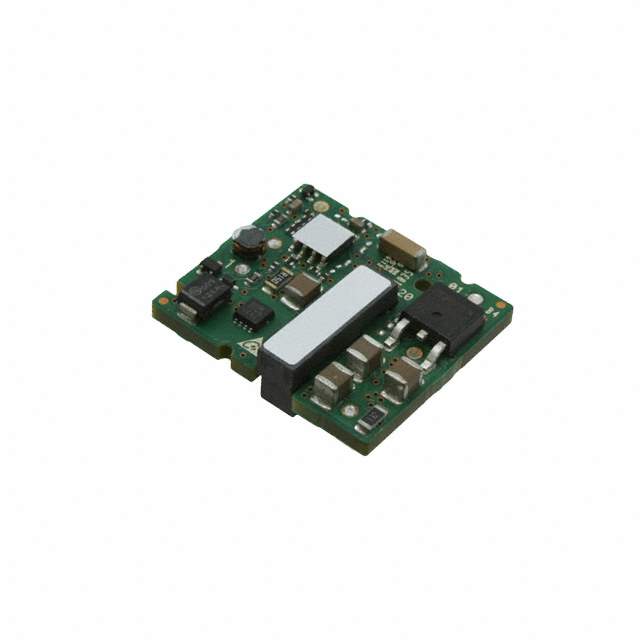

The Delta Electronics 1090042-S36SE3R305NMFB is a board mount module used for electronic equipment.

• Features: Over-current protection, over-temperature protection, over-voltage protection, and under-voltage lockout
• Termination: Surface mount technology (SMT)
• Length: 27.94 mm
• Width: 24.384 mm
• Height: 8.636 mm
• Isolation Voltage: 2.25 kV
• Outputs: One
• Output Voltage: 3.3 V
• Efficiency: 86.5%
• Maximum Input Voltage: 75 V
• Minimum Input Voltage: 18 V
• Maximum Output Current: 5 A
• Power Dissipation: 16.5 W
• RoHS Compliant: Yes
• Operating Temperature Range: -40 °C to 109 °C
