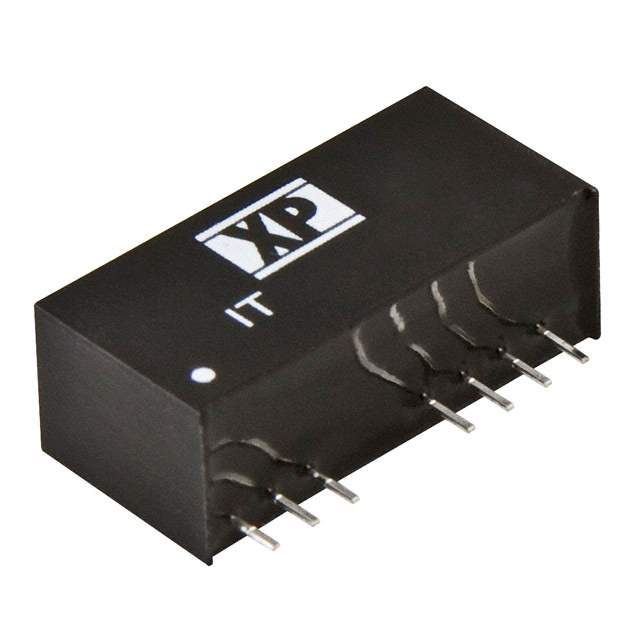

IT4805SA Real Image
Same model may have multiple batches, images only for reference.

IT4805SA

Part No IT4805SA
Manufacturer XP Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 3W  /  Isolated Module DC DC Converter 1 Output 5V 600mA 18V - 75V Input
Datasheet
IT4805SA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr XP Power
Series IT (3W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 5V
Current - Output (Max) 600mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 100°C
Efficiency 81%
Mounting Type Through Hole
Package / Case 9-SIP Module, 7 Leads
Dimension 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.2mm x 12.5mm)
Control Features Enable, Active Low
Standard Number 62368-1
Base Product Number IT4805
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Standard Package 10
Win Source Part Number 1135334-IT4805SA
Ultra Librarian 3D Model Ultra Librarian IT4805SA CAD Model

Description

The IT4805SA is a DC-DC converter module from XP Power that provides 3 watts of power.

  • Application: ITE (Commercial)
  • Features: Remote On/Off, SCP
  • Standard Package: 10
  • Mounting: through holes
  • Control Feature: Enable, Active Low
  • Voltage Isolation: 1.5 kV
  • Number of Outputs: One
  • Maximum Output Current: 600mA
  • Input Voltage Range: 18V to 75V
  • Output Voltage: 5V
  • Efficiency: 81%
  • Operating Temperature Range: -40°C to 100°C
  • Dimension: 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.2mm x 12.5mm)
