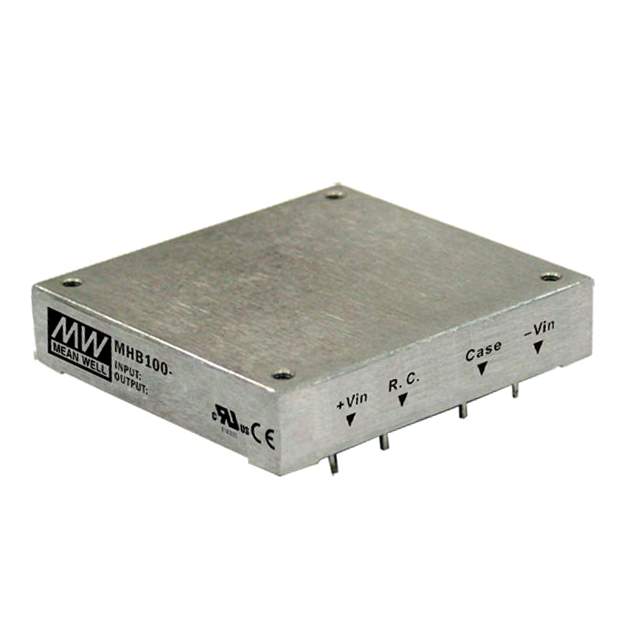

MHB100-24S05

Name: MHB100-24S05
Brand: Mean Well Enterprises Co., Ltd.
SKU: 1162382
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MHB100-24S05
Manufacturer	Mean Well Enterprises Co., Ltd.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 100W / Isolated Module DC DC Converter 1 Output 5V 20A 18V - 36V Input
Datasheet	MHB100-24S05 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	MEAN WELL USA Inc.
Series	MHB100 (100W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	20A
Power (Watts)	100 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	84%
Mounting Type	Through Hole
Package / Case	Half Brick
Dimension	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device Package	Half Brick
Base Product Number	MHB100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	MHB100-24S05-ND,1866-3424
Standard Package	60
Win Source Part Number	1162382-MHB100-24S05
Ultra Librarian 3D Model	Ultra Librarian MHB100-24S05 CAD Model

Alternative Products

Description

The MHB100-24S05 is a power supply module manufactured by MEAN WELL USA Inc. MEAN WELL USA Inc.

Module Type: Isolated
Series: MHB100
Power Output: 100W
Features: Remote on/off, overcurrent protection, over-temperature protection, overvoltage protection, short-circuit protection, and undervoltage lockout
Application: ITE (commercial)
Standard Package: 60
Voltage Isolation: 1.5 kV
Outputs: One
Maximum Output Current: 20A
Input Voltage: 18V to 36V
Output Voltage: 5V
Efficiency: 84%
Mounting Type: Through-hole
RoHS Compliance: Compliant
ECCN: EAR99
