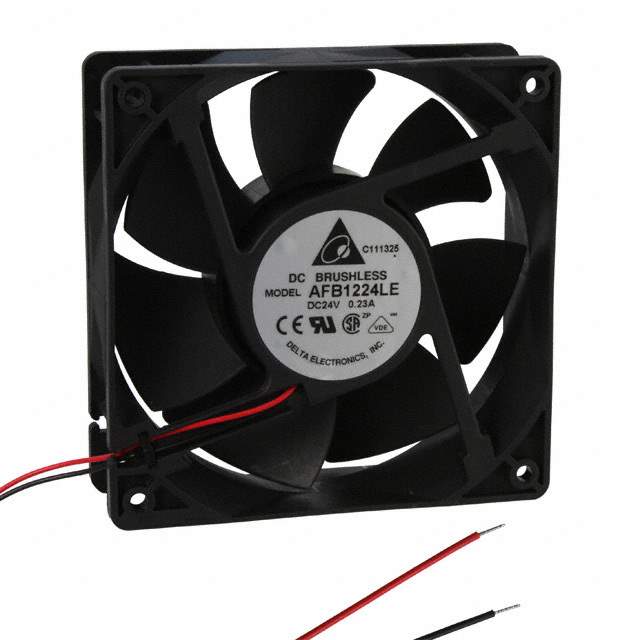

AFB1224LE Real Image
Same model may have multiple batches, images only for reference.

AFB1224LE

Part No AFB1224LE
Manufacturer Delta Electronics
Catalog DC Fans
Description FAN AXIAL 120X38MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 84.8 CFM (2.37m³/min) 2 Wire Leads
Datasheet
AFB1224LE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Bulk
Voltage - Rated 24VDC
Dimension Square - 120mm L x 120mm H
Width 38.00mm
Air Flow 84.8 CFM (2.37m³/min)
Static Pressure 0.180 in H2O (44.8 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 34.0dB(A)
Power (Watts) 3.6 W
RPM 2000 RPM
Termination 2 Wire Leads
Temperature Range - Operating 14 ~ 140°F (-10 ~ 60°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.565 lb (256.28 g)
Current Rating (Amps) 0.150A
Voltage Range 7 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB1224
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Other Names 603-1347
Standard Package 36
Win Source Part Number 1050130-AFB1224LE
Ultra Librarian 3D Model Ultra Librarian AFB1224LE CAD Model

Description

The AFB1224LE is an electronic component manufactured by Delta Electronics.

  • Dimension: square - 120mm L x 120mm H
  • Voltage Range: 7 ~ 27.6VDC
  • Power: 3.6 W
  • Locked Rotor Protection: Yes
  • Lifetime: 70000 Hrs @ 40°C
  • Fan Type: Tubeaxial
  • Bearing Type: ball
  • Win Source Part Number: 1050130-AFB1224LE
