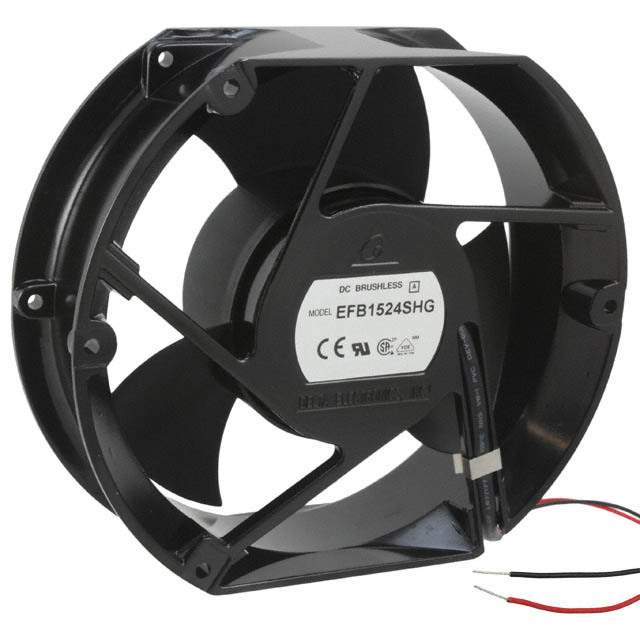

EFB1524SHG Real Image
Same model may have multiple batches, images only for reference.

EFB1524SHG

Part No EFB1524SHG
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 172X50.8MM 24VDC WIRE
Datasheet
EFB1524SHG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 2001219-EFB1524SHG
Win Source Part Number Cross
Manufacturer Delta Electronics
Category Fans, Thermal Management Fans DC Brushless Fans (BLDC)
Series EFB
Package Bulk
Product Status Active
Voltage - Rated 24VDC
Size / Dimension Rectangular/Rounded - 172mm L x 150mm H
Width 50.80mm
Static Pressure 1.083 in H2O (269.8 Pa)
Ultra Librarian 3D Model Ultra Librarian EFB1524SHG CAD Model

Description

The Delta Electronics EFB DC Brushless Fan is a thermal management fan that is designed to operate at 24VDC. It comes in a rectangular/rounded shape with dimensions of 172mm L x 150mm H x 50.80mm W. The fan has a static pressure of 1.083 in H2O (269.8 Pa) and is packaged in bulk. It is cross-referenced with other alternatives, and it is currently active in the market.
