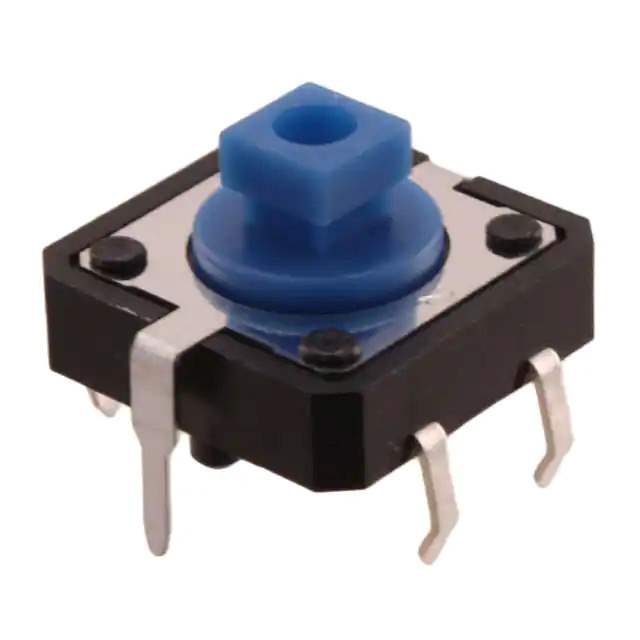

B3F-5150 Real Image
Same model may have multiple batches, images only for reference.

B3F-5150

Part No B3F-5150
Manufacturer Omron
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V / Tactile Switch SPST-NO Top Actuated Through Hole
Datasheet
B3F-5150 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Omron
Series B3F
Package Bag
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Plunger for Cap
Mounting Type Through Hole
Actuator Height off PCB, Vertical 7.30mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 12.00mm x 12.00mm
Illumination Non-Illuminated
Operating Force 130gf
Features Grounding Pin
Temperature Range - Operating -25°C ~ 70°C
Switch Travel 0.30mm
Mechanical Life 10,000,000 Cycles
Base Product Number B3F
Standard Package 500 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 935735-B3F-5150
Ultra Librarian 3D Model Ultra Librarian B3F-5150 CAD Model

Description

The Omron 935735-B3F-5150 is a tactile switch that is commonly used in electronic devices and circuits for user input and control. Bold the product name (e.g., BAV99S,135 → 935735-B3F-5150) and manufacturer (e.g., Nexperia USA Inc. → Omron).

  • Series: B3F
  • Termination Style: PC Pin
  • Package: Bag
  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Travel: 0.30mm
  • Operating Force: 130gf
  • Mechanical Life: 10,000,000 cycles
