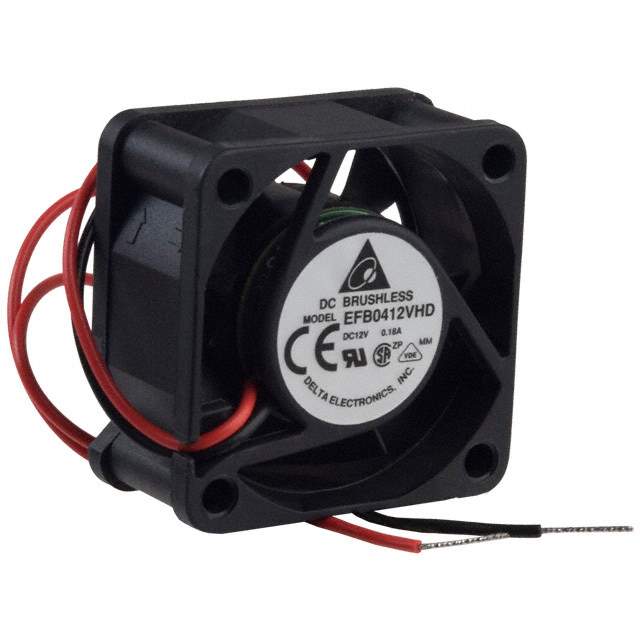

EFB0412VHD

Part No EFB0412VHD
Manufacturer Delta Electronics
Catalog DC Fans
Description FAN AXIAL 40X20MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 10.1 CFM (0.283m³/min) 2 Wire Leads
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series EFB
Package Tray
Voltage - Rated 12VDC
Dimension Square - 40mm L x 40mm H
Width 20.00mm
Air Flow 10.1 CFM (0.283m³/min)
Static Pressure 0.416 in H2O (103.6 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 32.5dB(A)
Power (Watts) 1.44 W
RPM 9000 RPM
Termination 2 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.073 lb (33.11 g)
Current Rating (Amps) 0.120A
Voltage Range 7 ~ 13.8VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number EFB0412
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Other Names 603-1010
Standard Package 336
Win Source Part Number 1020105-EFB0412VHD
Ultra Librarian 3D Model Ultra Librarian EFB0412VHD CAD Model

Description

Delta Electronics EFB0412VHD is a DC fan designed for thermal management in compact electronic systems where reliable airflow is important to system stability and service life. Components in this category are commonly selected for cooling power supplies, networking hardware, industrial control equipment, embedded systems, and other assemblies that need active heat dissipation in confined spaces. Engineers often consider Delta Electronics fans for established brand recognition, broad use across industrial and electronics applications, and suitability for maintaining operating temperatures in continuously running equipment. For new designs, this part should be reviewed within the context of acoustic, airflow, power, and mechanical fit requirements using the latest official documentation. Lifecycle status information for EFB0412VHD is currently not available, so supply continuity should be verified before committing to production. RoHS compliance information is also not available in the provided data and should be confirmed directly through the manufacturer datasheet or authorized channel documentation.
