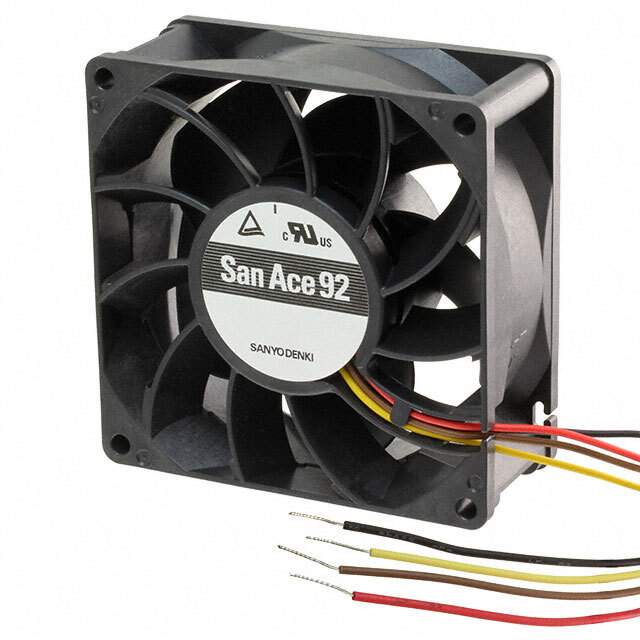

9GA0912P1H03 Real Image
Same model may have multiple batches, images only for reference.

9GA0912P1H03

Part No 9GA0912P1H03
Manufacturer Sanyo Denki America Inc.
Catalog DC Fans
Description FAN 92X38MM 12VDC TACH,PWM / Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 141.2 CFM (3.95m³/min) 4 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 92
Package Box
Voltage - Rated 12VDC
Dimension Square - 92mm L x 92mm H
Width 38.00mm
Air Flow 141.2 CFM (3.95m³/min)
Static Pressure 2.010 in H2O (500.7 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features PWM Control, Speed Sensor (Tach)
Noise 63.0dB(A)
Power (Watts) 25.2 W
RPM 9700 RPM
Termination 4 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.529 lb (239.95 g)
Current Rating (Amps) 2.1A
Voltage Range 10.2 ~ 13.8VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 40000 Hrs @ 60°C
Base Product Number 9GA0912
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Other Names 1688-1604
Standard Package 28
Win Source Part Number 1219726-9GA0912P1H03
Ultra Librarian 3D Model Ultra Librarian 9GA0912P1H03 CAD Model

Description

The San Ace 92 DC brushless fan from Sanyo Denki America Inc is a high-quality fan designed for thermal management.

  • Voltage Rating: 12VDC
  • Power Rating: 25.2 W
  • Size: 92mm L x 92mm H
  • Fan Shape: Square
  • Air Flow: 141.2 CFM (3.95m³/min)
  • Static Pressure: 2.010 in H2O (500.7 Pa)
  • Bearing Type: Ball
  • Product Status: Active
