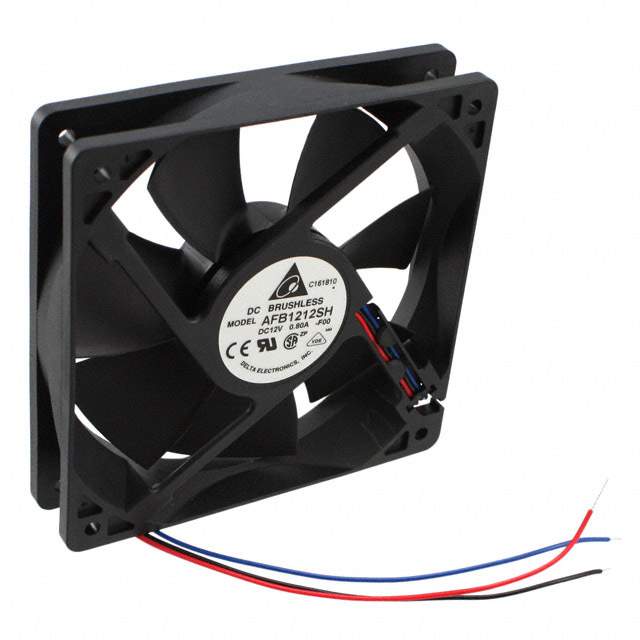

AFB1212SH-F00 Real Image
Same model may have multiple batches, images only for reference.

AFB1212SH-F00

Part No AFB1212SH-F00
Manufacturer Delta Electronics
Catalog DC Fans
Description FAN AXIAL 120X25.4MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 113.1 CFM (3.17m³/min) 3 Wire Leads
Datasheet
AFB1212SH-F00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Bulk
Voltage - Rated 12VDC
Dimension Square - 120mm L x 120mm H
Width 25.40mm
Air Flow 113.1 CFM (3.17m³/min)
Static Pressure 0.430 in H2O (107.1 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, Speed Sensor (Tach)
Noise 46.5dB(A)
Power (Watts) 6.36 W
RPM 3400 RPM
Termination 3 Wire Leads
Temperature Range - Operating 14 ~ 140°F (-10 ~ 60°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.437 lb (198.00 g)
Current Rating (Amps) 0.530A
Voltage Range 7 ~ 13.8VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB1212
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Other Names 603-1336,AFB1212SHF00
Standard Package 54
Win Source Part Number 1189500-AFB1212SH-F00
Ultra Librarian 3D Model Ultra Librarian AFB1212SH-F00 CAD Model

Description

The Delta Electronics AFB1212SH-F00 is a DC brushless fan that belongs to the AFB series.

  • Package: Bulk
  • Standard Package: 54
  • Voltage Rating: 12VDC
  • Power: 6.36W
  • Lifetime: 70,000 hours @ 40℃
  • Width: 25.40mm
  • Dimension: Square-120mm L x 120mm H
  • Air Flow: 113.1 CFM (3.17m³/min)
  • Static Pressure: 0.430 in H2O (107.1 Pa)
  • Noise Level: 46.5dB(A)
  • RPM: 3400
  • Temperature Range: 14℉ to 140℉ (-10℃ to 60℃)
  • MSL Level: 1
  • REACH Status: REACH unaffected
  • HTSUS Code: 8414.59.6590
