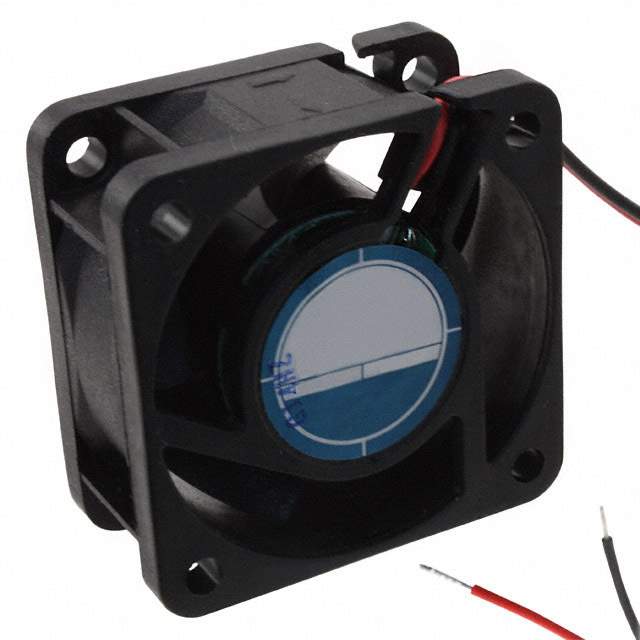

OD4020-24MB Real Image
Same model may have multiple batches, images only for reference.

OD4020-24MB

Part No OD4020-24MB
Manufacturer Orion Fans
Catalog DC Fans
Description FAN AXIAL 40X20MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 8.0 CFM (0.224m³/min) 2 Wire Leads
Datasheet
OD4020-24MB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr Orion Fans
Series OD4020
Package Box
Voltage - Rated 24VDC
Dimension Square - 40mm L x 40mm H
Width 20.00mm
Air Flow 8.0 CFM (0.224m³/min)
Static Pressure 0.170 in H2O (42.3 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Auto Restart
Noise 30.0dB(A)
Power (Watts) 1.7 W
RPM 6475 RPM
Termination 2 Wire Leads
Temperature Range - Operating -4 ~ 149°F (-20 ~ 65°C)
Approval Agency CE, cURus, TUV
Current Rating (Amps) 0.060A
Voltage Range 14 ~ 26.4VDC
Material - Frame Polybutylene Terephthalate (PBT)
Material - Blade Polybutylene Terephthalate (PBT)
Lifetime @ Temp. 65000 Hrs @ 45°C
Base Product Number OD4020
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Other Names 1053-1222,OD4020-24MBX,OD402024MB
Standard Package 1
Win Source Part Number 1223056-OD4020-24MB
Ultra Librarian 3D Model Ultra Librarian OD4020-24MB CAD Model

Description

The OD4020-24MB is a DC brushless fan from Orion Fans.

  • Voltage: 24VDC
  • Power: 1.7W
  • Max Air Flow: 8.0 CFM
  • Max Static Pressure: 0.170 in H2O
  • Noise Level: 30.0dB(A)
  • Lifetime: 65000 hours @ 45°C
