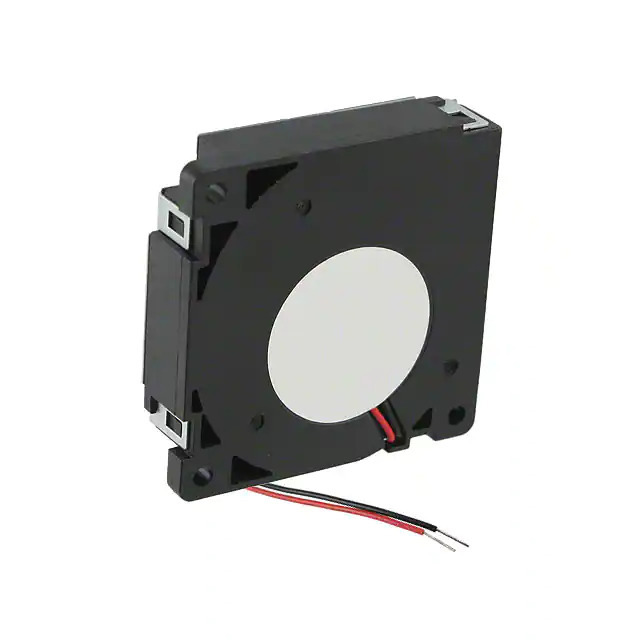

BFB04512HHA-C Delta Electronics
Same model may have multiple batches, images only for reference.

BFB04512HHA-C

Part No BFB04512HHA-C
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN BLOWER 45X10.3MM 12VDC WIRE
Datasheet
BFB04512HHA-C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series BFB
Package Bulk
Product Status Active
Voltage - Rated 12VDC
Size / Dimension Square - 45mm L x 45mm H
Width 10.30mm
Air Flow 3.5 CFM (0.098m³/min)
Static Pressure 0.560 in H2O (139.5 Pa)
Bearing Type Ball
Fan Type Blower
Features Locked Rotor Protection
Noise 35.5dB(A)
Power (Watts) 1.56 W
RPM 5900 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.04 lb (18.14 g)
Current Rating (Amps) 0.130A
Voltage Range 5 ~ 13.2VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 30000 Hrs @ 40°C
Base Product Number BFB04512
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6560
Win Source Part Number 1368390-BFB04512HHA-C
Ultra Librarian 3D Model Ultra Librarian BFB04512HHA-C CAD Model

Description

The BFB04512HHA-C DC brushless fan from Delta Electronics is a reliable cooling solution for electronic devices.

  • Size: 45mm x 45mm
  • Rated Voltage: 12VDC
  • Current Rating: 0.130A
  • Air Flow: 3.5 CFM (0.098m³/min)
  • Static Pressure: 0.560 in H2O (139.5 Pa)
  • Bearing Type: Ball
  • Lifetime: 30,000 hours @ 40°C
  • Protection: Locked Rotor
