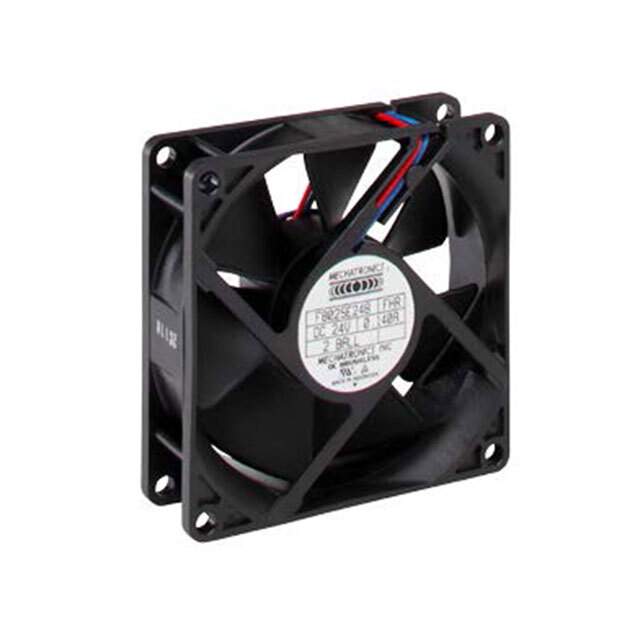

F8025X12B1-FHR Real Image
Same model may have multiple batches, images only for reference.

F8025X12B1-FHR

Part No F8025X12B1-FHR
Manufacturer Mechatronics Fan Group
Catalog Fans, Thermal Management
Description FAN AXIAL 80X25MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 53.0 CFM (1.48m³/min) 3 Wire Leads
Datasheet
F8025X12B1-FHR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Mechatronics Fan Group
Series F8025-H
Package Bulk
Voltage - Rated 12VDC
Size / Dimension Square - 80mm L x 80mm H
Width 25.00mm
Air Flow 53.0 CFM (1.48m³/min)
Static Pressure 0.260 in H2O (64.8 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Speed Sensor (Tach) , Thermal Overload Protector (TOP)
Noise 39.0dB(A)
RPM 4200 RPM
Termination 3 Wire Leads
Approval Agency CE, cUL, TUV, UL
Weight 0.182 lb (82.55 g)
Current Rating (Amps) 0.480A
Material - Frame Polybutylene Terephthalate (PBT)
Material - Blade Polybutylene Terephthalate (PBT)
Base Product Number F8025
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1342754-F8025X12B1-FHR
Ultra Librarian 3D Model Ultra Librarian F8025X12B1-FHR CAD Model

Description

The F8025X12B1-FHR is a DC brushless fan from Mechatronics Fan Group.

  • Package: Bulk
  • Size: Square - 80mm L x 80mm H
  • Air Flow: 53.0 CFM (1.48m³/min)
  • Static Pressure: 0.260 in H2O (64.8 Pa)
  • Bearing Type: Ball
  • Fan Type: Tubeaxial
  • Noise Level: 39.0dB(A)
  • RPM: 4200
  • Frame and Blade Material: Polybutylene Terephthalate (PBT)
