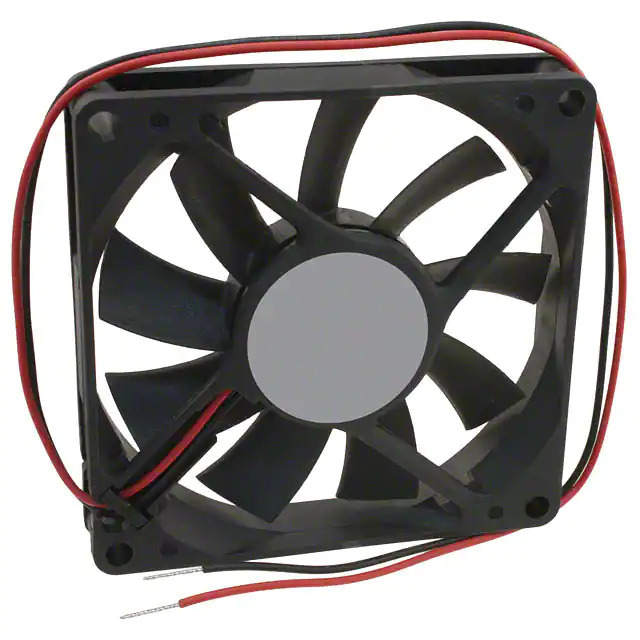

AFB0824HHB Delta Electronics
Same model may have multiple batches, images only for reference.

AFB0824HHB

Part No AFB0824HHB
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 80X15MM 24VDC WIRE
Datasheet
AFB0824HHB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Box
Product Status Active
Voltage - Rated 24VDC
Size / Dimension Square - 80mm L x 80mm H
Width 15.00mm
Air Flow 35.7 CFM (1.00m³/min)
Static Pressure 0.159 in H2O (39.6 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 37.0dB(A)
Power (Watts) 2.4 W
RPM 3400 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.128 lb (58.06 g)
Current Rating (Amps) 0.100A
Voltage Range 14 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0824
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368406-AFB0824HHB
Ultra Librarian 3D Model Ultra Librarian AFB0824HHB CAD Model

Description

The AFB0824HHB is a DC brushless fan from Delta Electronics.

  • Series: AFB
  • Voltage Rating: 24VDC
  • Current Rating: 0.100A
  • Power Consumption: 2.4W
  • Locked Rotor Protection: Yes
  • Size: 80mm Square / 80mm Height
  • Material: Plastic (Frame & Blade)
  • Bearing Type: Ball
  • Speed: 3400 RPM
  • Air Flow: 35.7 CFM
  • Approvals: CE, CSA, UL, VDE
  • Noise Level: 37.0dB(A)
  • Lifetime: 70000 hours @ 40°C
