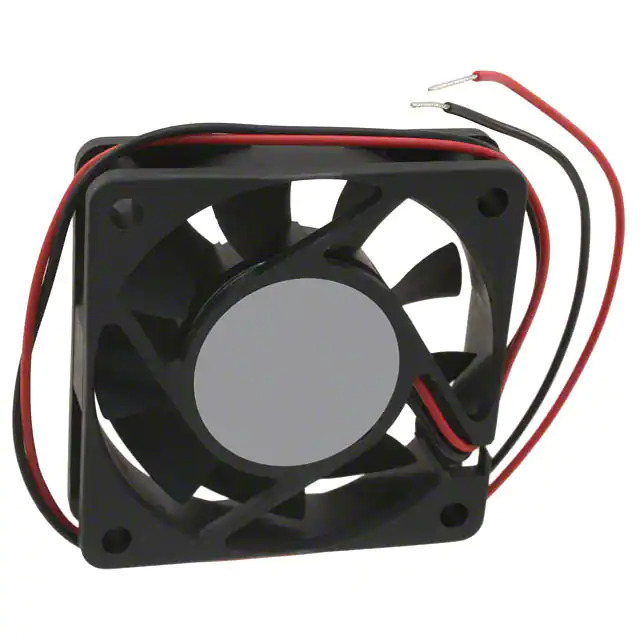

AFB0624HHB Delta Electronics
Same model may have multiple batches, images only for reference.

AFB0624HHB

Part No AFB0624HHB
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 60X15MM 24VDC WIRE
Datasheet
AFB0624HHB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Bulk
Product Status Active
Voltage - Rated 24VDC
Size / Dimension Square - 60mm L x 60mm H
Width 15.00mm
Air Flow 17.3 CFM (0.484m³/min)
Static Pressure 0.195 in H2O (48.6 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 35.0dB(A)
Power (Watts) 2.4 W
RPM 4500 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.098 lb (44.45 g)
Current Rating (Amps) 0.100A
Voltage Range 14 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0624
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368388-AFB0624HHB
Ultra Librarian 3D Model Ultra Librarian AFB0624HHB CAD Model

Description

The AFB0624HHB is a DC brushless fan manufactured by Delta Electronics.

  • Rated Voltage: 24VDC
  • Current Rating: 0.100A
  • Power Rating: 2.4W
  • Size: 60mm x 60mm
  • Bearing Type: Ball
  • Noise Level: 35.0dB(A)
  • Speed: 4500 RPM (Maximum)
  • Air Flow: 17.3 CFM
  • Protection: Locked Rotor
  • Approvals: CE, CSA, UL, and VDE
