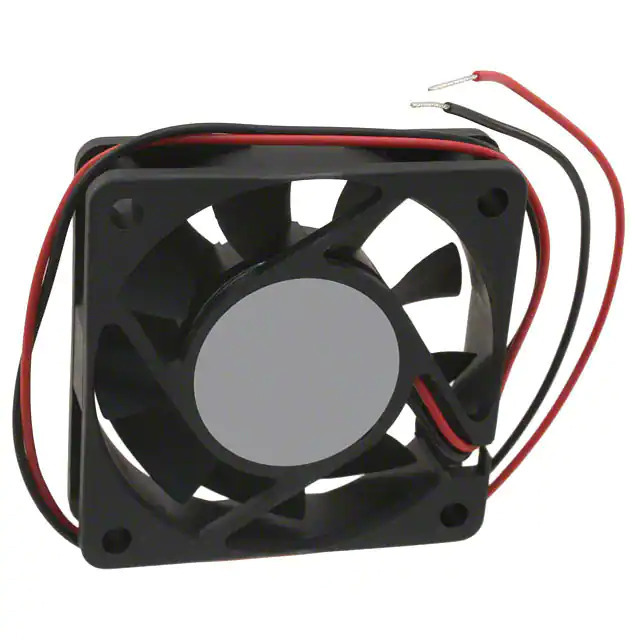

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Tray
Product Status Obsolete
Voltage - Rated 12VDC
Size / Dimension Square - 60mm L x 60mm H
Width 15.00mm
Air Flow 17.3 CFM (0.484m³/min)
Static Pressure 0.195 in H2O (48.6 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 35.0dB(A)
Power (Watts) 1.44 W
RPM 4500 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.098 lb (44.45 g)
Current Rating (Amps) 0.120A
Voltage Range 7 ~ 13.8VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0612
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368444-AFB0612HHB
Ultra Librarian 3D Model Ultra Librarian AFB0612HHB CAD Model

Description

The Delta Electronics AFB0612HHB is a DC brushless fan designed for thermal management in electronic devices.

  • Voltage Rating: 12VDC
  • Current Rating: 0.120A
  • Power Output: 1.44W
  • Features: Locked rotor protection
  • Size: 60mm x 60mm
  • Airflow: 17.3 CFM
  • Static Pressure: 0.195 in H2O
  • Noise Level: 35.0dB(A)
  • Maximum Speed: 4500 RPM
  • Frame and Blade Material: Plastic
  • Approvals: CE, CSA, UL, VDE
  • Product Status: Obsolete
  • Performance: Reliable cooling performance for various electronic applications
