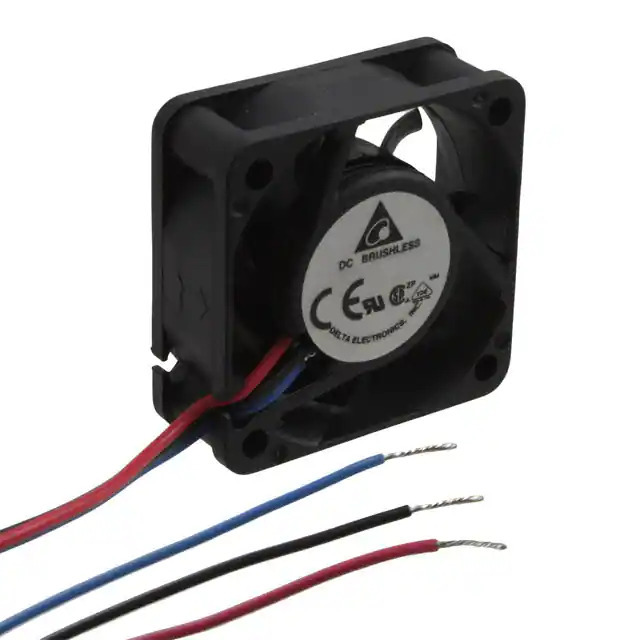

AFB0412HHA-AF00 Delta Electronics
Same model may have multiple batches, images only for reference.

AFB0412HHA-AF00

Part No AFB0412HHA-AF00
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 40X10MM 12VDC WIRE
Datasheet
AFB0412HHA-AF00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Box
Product Status Active
Voltage - Rated 12VDC
Size / Dimension Square - 40mm L x 40mm H
Width 10.00mm
Air Flow 8.2 CFM (0.230m³/min)
Static Pressure 0.190 in H2O (47.3 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, Speed Sensor (Tach)
Noise 31.5dB(A)
Power (Watts) 600 mW
RPM 7000 RPM
Termination 3 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.031 lb (14.06 g)
Current Rating (Amps) 0.050A
Voltage Range 7 ~ 13.8VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0412
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368447-AFB0412HHA-AF00
Ultra Librarian 3D Model Ultra Librarian AFB0412HHA-AF00 CAD Model

Description

The AFB0412HHA-AF00 is a DC brushless fan manufactured by Delta Electronics.

  • Series: AFB
  • Shape: Square
  • Dimensions: 40mm L x 40mm H
  • Rated Voltage: 12VDC
  • Current Rating: 0.050A
  • Power Consumption: 600mW
  • Features: Locked rotor protection, Speed sensor (tach)
  • Lifespan: 70000 hours @ 40°C
  • Temperature Range: 14 to 158°F (-10 to 70°C)
  • Air Flow: 8.2 CFM (0.230m³/min)
  • Static Pressure: 0.190 in H2O (47.3 Pa)
  • Speed: 7000 RPM
  • Noise Level: 31.5dB(A)
  • Material: Plastic
  • Leads: 3 wire leads
  • Approvals: CE, CSA, UL, VDE
