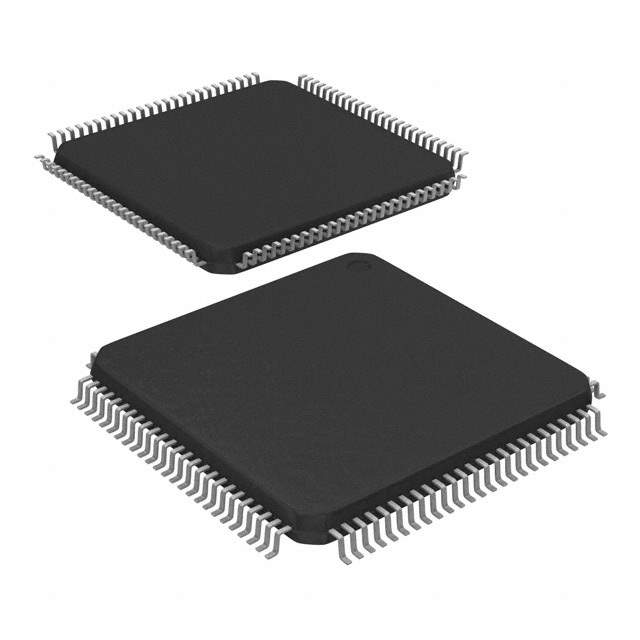

MB9BF506NBPMC-G-JNE2 Real Image
Same model may have multiple batches, images only for reference.

MB9BF506NBPMC-G-JNE2

Part No MB9BF506NBPMC-G-JNE2
Manufacturer Cypress Semiconductor Corp
Catalog Embedded - Microcontrollers
Description MCU 32-bit ARM Cortex M3 RISC 512KB Flash 3.3V/5V 100-Pin LQFP Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package LQFP
Core Architecture ARM
Data Bus Width 32 b
Frequency 80 MHz
Interface CAN, EBI/EMI, I2C, LIN, UART, USART, USB
Max Frequency 80 MHz
Maximum Operating Temperature 85 °C
Max Supply Voltage 5.5 V
Memory Size 512 kB
Memory Type FLASH
Min Operating Temperature -40 °C
Min Supply Voltage 2.7 V
Mount Surface Mount
Number of I/Os 80
Number of Programmable I/O 80
Number of Timers/Counters 20
Oscillator Type Internal
Packaging Tape & Reel
Peripherals DMA, LVD, POR, PWM, WDT
Radiation Hardening No
RAM Size 64 kB
RoHS Compliant
Schedule B 8542310000
Watchdog Timer Yes
Win Source Part Number 1076366-MB9BF506NBPMC-G-JNE2
Categories Embedded - Microcontrollers
Manufacturer Cypress Semiconductor Corp
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian MB9BF506NBPMC-G-JNE2 CAD Model

Description

The MB9BF506NBPMC-G-JNE2 is an embedded microcontroller from Cypress Semiconductor Corp.

  • Case/Package: LQFP case/package
  • Mounting: surface mount mounted
  • Frequency: 80 MHz
  • Memory Size: 512 kB
  • Interfaces: CAN, EBI/EMI, I2C, LIN, UART, USART, and USB
  • Peripherals: DMA, LVD, POR, PWM, and WDT
  • RAM Size: 64 kB
  • Oscillator Type: internal
  • Supply and Demand Status: shortage
  • RoHS: RoHS compliant
  • Data Bus Width: 32 b
  • Maximum Supply Voltage: 5.5V
  • Core Architecture: ARM
  • I/Os: 80
  • Programmable I/Os: programmable I/Os
