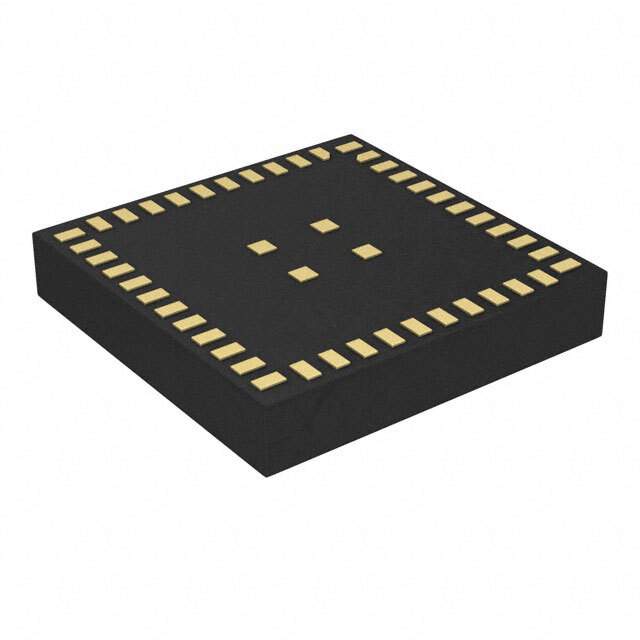

CYW20737S Real Image
Same model may have multiple batches, images only for reference.

CYW20737S

Part No CYW20737S
Manufacturer Cypress Semiconductor Corp
Catalog RF Receivers
Description IC RF TXRX+MCU BLUETOOTH 48LGA / IC RF TxRx + MCU Bluetooth Bluetooth v4.0 2.4GHz 48-TFLGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver ICs
Mfr Cypress Semiconductor Corp
Series WICED
Package Tray
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v4.0
Modulation GFSK
Frequency 2.4GHz
Data Rate (Max) 1Mbps
Power - Output 4dBm
Sensitivity -94dBm
Memory Size 320kB ROM, 60kB RAM
Serial Interfaces I2C, SPI, UART
GPIO 14
Voltage - Supply 3.8V
Current - Receiving 9.8mA
Current - Transmitting 9.1mA
Temperature Range - Operating -30°C ~ 85°C
Mounting SMD (SMT)
Package / Case 48-TFLGA
Supplier Device Package 48-LGA (6.5x6.5)
Base Product Number CYW20737
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.39.0001
Other Names BCM20737S,428-3933-ND,2015-CYW20737S,2832-CYW20737S,428-3933INACTIVE,428-3657,428-3933
Standard Package 2,600
Win Source Part Number 1229175-CYW20737S
Ultra Librarian 3D Model Ultra Librarian CYW20737S CAD Model

Description

The Cypress Semiconductor Corp CYW20737S is an RF/IF and RFID RF Transceiver IC that belongs to the WICED series.

  • Series: WICED
  • Type: TxRx + MCU
  • Frequency: 2.4 GHz
  • Protocol: Bluetooth v4.0
  • Memory Size: 320kB ROM and 60kB RAM
  • Sensitivity: -94dBm
  • Data Rate: 1Mbps
  • Transmitting Current: 9.1mA
  • Receiving Current: 9.8mA
