Same model may have multiple batches, images only for reference.

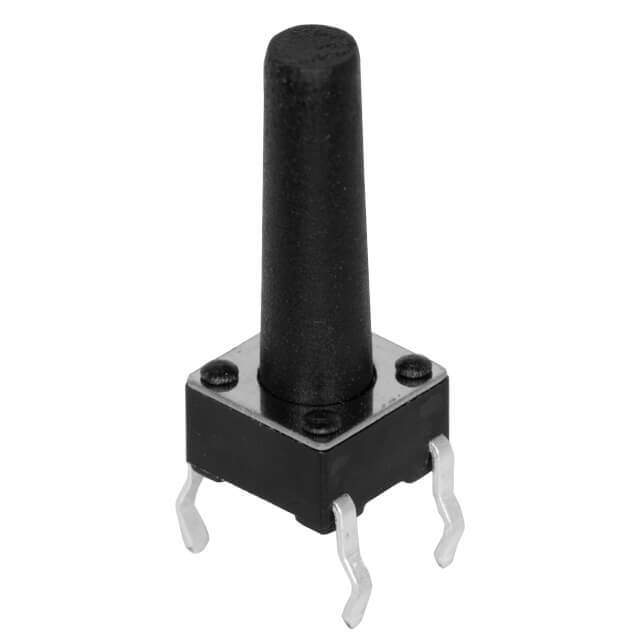

TS02-66-130-BK-160-LCR-D Real Image
Same model may have multiple batches, images only for reference.

TS02-66-130-BK-160-LCR-D

Part No TS02-66-130-BK-160-LCR-D
Manufacturer CUI Inc.
Catalog Tactile Switches
Description 6 X 6 MM, 13 MM ACTUATOR HEIGHT, / Tactile Switch SPST-NO Top Actuated Through Hole
Datasheet
TS02-66-130-BK-160-LCR-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr CUI Devices
Series TS02
Package Bag
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Through Hole
Actuator Height off PCB, Vertical 13.00mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Operating Force 160gf
Temperature Range - Operating -30°C ~ 80°C
Actuator Material Polyamide (PA66) , Nylon 6/6
Switch Travel 0.25mm
Mechanical Life 80,000 Cycles
Base Product Number TS02-66
Standard Package 1,000
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1345600-TS02-66-130-BK-160-LCR-D
Ultra Librarian 3D Model Ultra Librarian TS02-66-130-BK-160-LCR-D CAD Model

Description

The TS02-66-130-BK-160-LCR-D is a SPST-NO tactile switch manufactured by CUI Devices.

  • Circuit Configuration: SPST-NO
  • Switch Function: off-mom
  • Actuator Type: standard
  • Switch Travel: 0.25mm
  • Operating Force: 160gf
  • Mechanical Life: 80,000 cycles
  • Contact Rating: 0.05A @ 12VDC
  • Actuation: top
  • Mounting Type: through-hole
  • Package: 1,000
  • Operating Temperature: -30°C to 80°C
