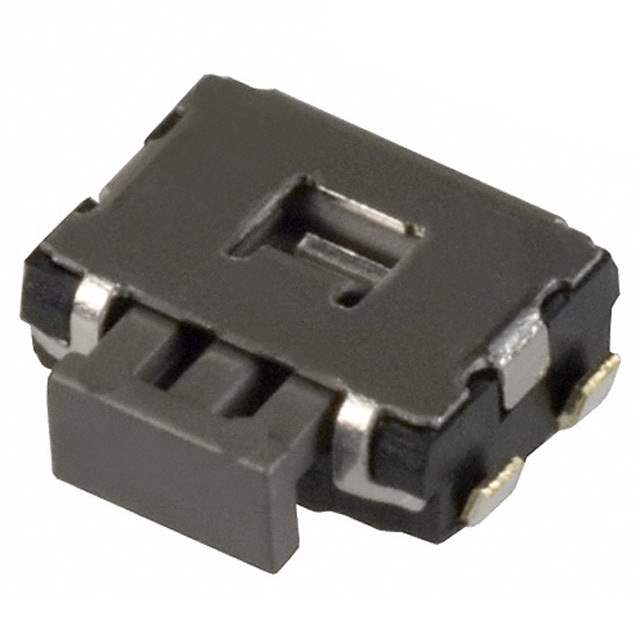

EVQ-PUD02K

Part No EVQ-PUD02K
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Rectangular Button
Mounting Surface Mount, Right Angle
Actuator Orientation Side Actuated
Termination Style J Lead
Outline 4.70mm x 3.50mm
Illumination Non-Illuminated
Operating Force 220gf
Features Board Guide
Switch Travel 0.30mm
Mechanical Life 100,000 Cycles
Temperature Range - Operating -20°C to 70°C
Win Source Part Number 001035-EVQ-PUD02K
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian EVQ-PUD02K CAD Model

Description

Product Description

The EVQ-PUD02K represents the pinnacle of switch technology. It's designed to offer seamless integration and optimal performance in all modern electronic systems.

Features and Benefits

  • Ultra-Responsive: Fast activation for time-sensitive tasks.
  • Compact Footprint: Saves valuable space on crowded PCBs.
  • High Current Rating: Suitable for more than just low-power applications.
  • Wide Operating Temperature: Reliable under extreme conditions.

Applications

  • Computer peripherals
  • Automated systems
  • Security equipment
  • Wearable devices

Its superior build quality and features make it an essential component for engineers and designers.
