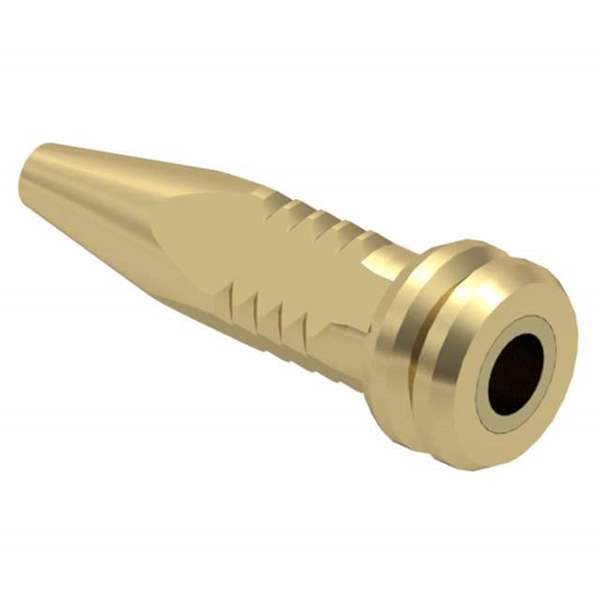

4994-0-15-15-11-27-10-0 Mill-Max Manufacturing Corp.
Same model may have multiple batches, images only for reference.

4994-0-15-15-11-27-10-0

Part No 4994-0-15-15-11-27-10-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals
Description CONN PIN RCPT .015-.020 PRESSFIT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Mill-Max Manufacturing Corp.
Packaging Bulk
Status Active
Tail Type No Tail
Termination Press-Fit
Length - Overall 0.155" (3.94mm)
Accepts Pin Diameter 0.015" to 0.020" (0.38mm to 0.51mm)
Mounting Hole Diameter 0.041" to 0.044" (1.04mm to 1.12mm)
Pin Hole Diameter 0.031" (0.79mm)
Flange Diameter 0.055" (1.40mm)
Socket Depth 0.100" (2.54mm)
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Temperature Range - Operating -55°C to 125°C
Win Source Part Number 1032013-4994-0-15-15-11-27-10-0
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian 4994-0-15-15-11-27-10-0 CAD Model

Description

The Mill-Max Manufacturing Corp. press-fit connector is a reliable and efficient solution for electronic interconnects.

  • Contact Finish: Gold
  • Contact Finish Thickness: 30μin (0.76μm)
  • Pin Diameter: 0.015" to 0.020" (0.38mm to 0.51mm)
  • Mounting Hole Diameter: 0.041" to 0.044" (1.04mm to 1.12mm)
  • Socket Depth: 0.100" (2.54mm)
  • Overall Length: 0.155" (3.94mm)
  • Flange Diameter: 0.055" (1.40mm)
  • Tail Type: No Tail
  • Temperature Range: -55°C to 125°C
  • Packaging: Bulk
  • Quantity: 500
