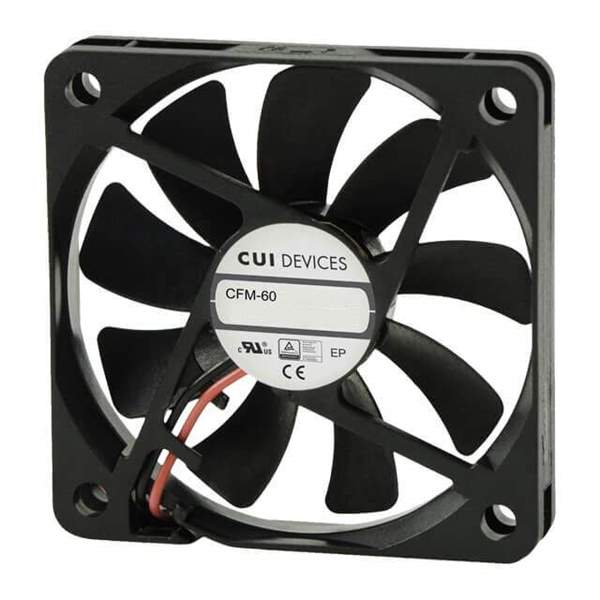

CFM-6010V-140-285 Real Image
Same model may have multiple batches, images only for reference.

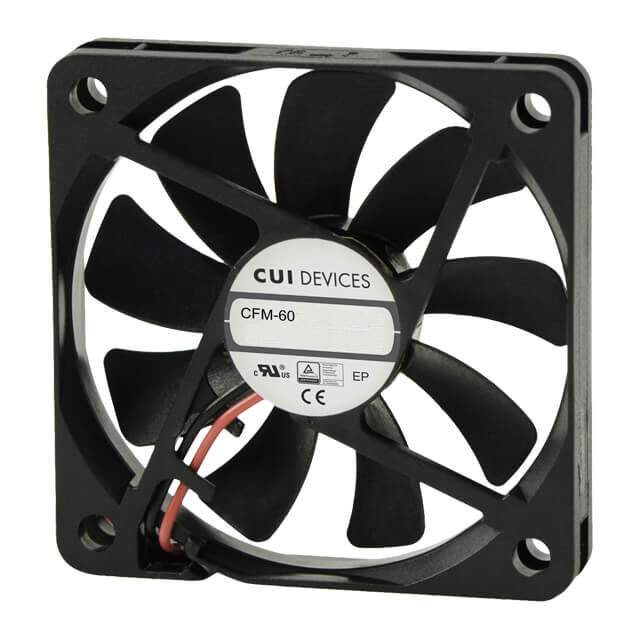

CFM-6010V-140-285

Part No CFM-6010V-140-285
Manufacturer CUI Inc.
Catalog DC Fans
Description FAN AXIAL 60X10MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 60mm L x 60mm H omniCOOL™ Magnetic Sleeve 16.3 CFM (0.456m³/min) 2 Wire Leads
Datasheet
CFM-6010V-140-285 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr CUI Devices
Series CFM-60V
Package Tray
Voltage - Rated 12VDC
Dimension Square - 60mm L x 60mm H
Width 10.00mm
Air Flow 16.3 CFM (0.456m³/min)
Static Pressure 0.120 in H2O (29.9 Pa)
Bearing Type omniCOOL™ Magnetic Sleeve
Fan Type Tubeaxial
Features Auto Restart
Noise 28.5dB(A)
Power (Watts) 1.5 W
RPM 4000 RPM
Termination 2 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, cURus, TUV
Weight 0.051 lb (23.13 g)
Current Rating (Amps) 0.125A
Voltage Range 4.5 ~ 13.8VDC
Material - Frame Polybutylene Terephthalate (PBT)
Material - Blade Polybutylene Terephthalate (PBT)
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number CFM-6010
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Other Names 102-4368
Standard Package 200
Win Source Part Number 1144237-CFM-6010V-140-285
Ultra Librarian 3D Model Ultra Librarian CFM-6010V-140-285 CAD Model

Description

The CFM-60V DC Brushless Fan is a high-quality fan from CUI Devices that is designed to provide efficient thermal management for electronic components.

  • Rated Voltage: 12VDC
  • Power: 1.5W
  • Bearing Type: omniCOOL™ Magnetic Sleeve
  • Speed: 4000 RPM
  • Noise Level: 28.5dB(A)
  • Width: 10.00mm
  • Dimension: Square - 60mm L x 60mm H
  • Weight: 0.051 lb (23.13 g)
  • Lifetime: 70000 Hrs @ 40°C
  • Air Flow: 16.3 CFM (0.456m³/min)
  • Static Pressure: 0.120 in H2O (29.9 Pa)
  • Feature: Auto Restart
  • Termination: 2 Wire Leads
  • Packaging: Tray (Standard Package of 200)
  • Approvals: CE, cURus, TUV
  • ECCN: EAR99
