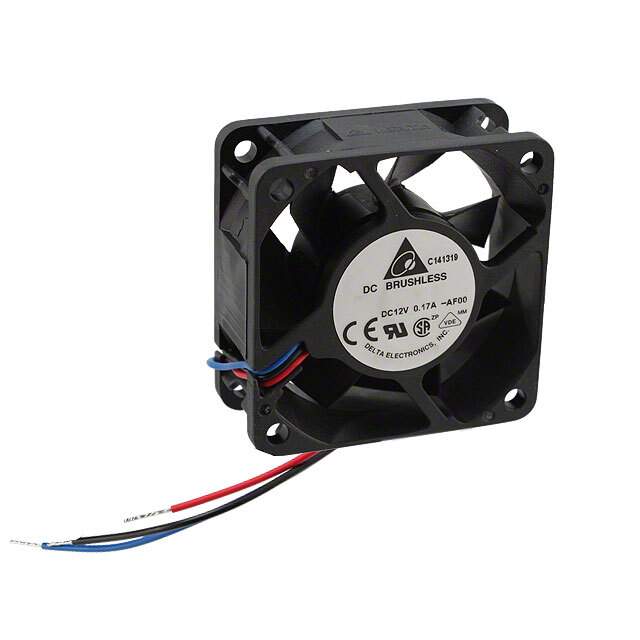

AFB0612H-AF00 Real Image
Same model may have multiple batches, images only for reference.

AFB0612H-AF00

Part No AFB0612H-AF00
Manufacturer Delta Electronics
Catalog DC Fans
Description FAN AXIAL 60X25.4MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 23.4 CFM (0.655m³/min) 3 Wire Leads
Datasheet
AFB0612H-AF00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Bulk
Voltage - Rated 12VDC
Dimension Square - 60mm L x 60mm H
Width 25.40mm
Air Flow 23.4 CFM (0.655m³/min)
Static Pressure 0.211 in H2O (52.6 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, Speed Sensor (Tach)
Noise 34.0dB(A)
Power (Watts) 1.68 W
RPM 4250 RPM
Termination 3 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.176 lb (80.00 g)
Current Rating (Amps) 0.140A
Voltage Range 4 ~ 13.8VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0612
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Other Names 603-1525,AFB0612HAF00
Standard Package 180
Win Source Part Number 1224397-AFB0612H-AF00
Ultra Librarian 3D Model Ultra Librarian AFB0612H-AF00 CAD Model

Description

The Delta Electronics AFB0612H-AF00 is a DC brushless fan with a voltage rating of 12VDC and a power of 1.68 W.

  • Lifetime: 70000 Hrs @ 40°C
  • Width: 25.40mm
  • Depth: 12.5 mm
  • Fan Type: Tubeaxial
  • Bearing Type: Ball
  • Noise Level: 34.0dB(A)
  • RPM: 4250
  • Frame and Blade Material: Plastic
  • Temperature Range: 14 ~ 158°F (-10 ~ 70°C)
  • Approvals: CE, CSA, UL, VDE
  • Series: AFB
  • Features: Locked Rotor Protection, Speed Sensor (Tach)
  • Static Pressure: 0.211 in H2O (52.6 Pa)
  • Air Flow: 23.4 CFM (0.655m³/min)
