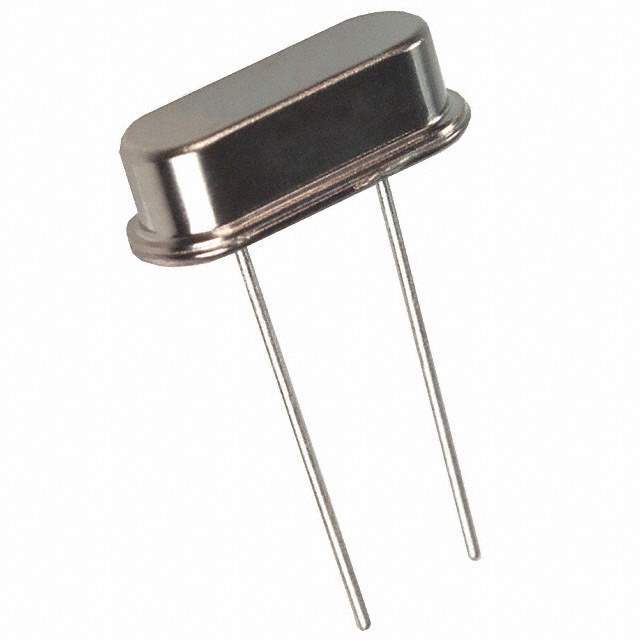

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr CTS-Frequency Controls
Series ATS
Package Bulk
Type MHz Crystal
Frequency 16 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance Series
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Through Hole
Package / Case HC-49/US
Dimension 0.427" L x 0.177" W (10.85mm x 4.50mm)
Height - Seated (Max) 0.145" (3.68mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Names CTX414
Standard Package 100
Win Source Part Number 1046948-ATS160
Ultra Librarian 3D Model Ultra Librarian ATS160 CAD Model

Description

The ATS series MHz crystal is a high-quality through-hole component manufactured by CTS-Frequency Controls.

  • Frequency: 16 MHz
  • ESR: 40 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: series
  • Operating Mode: fundamental
  • Mounting Type: through hole
  • Package/Case: HC-49/US
  • Dimension: 0.427" L x 0.177" W (10.85mm x 4.50mm)
  • Height-Seated (Max): 0.145" (3.68mm)
  • Description: reliable choice for use in a variety of electronic applications.
