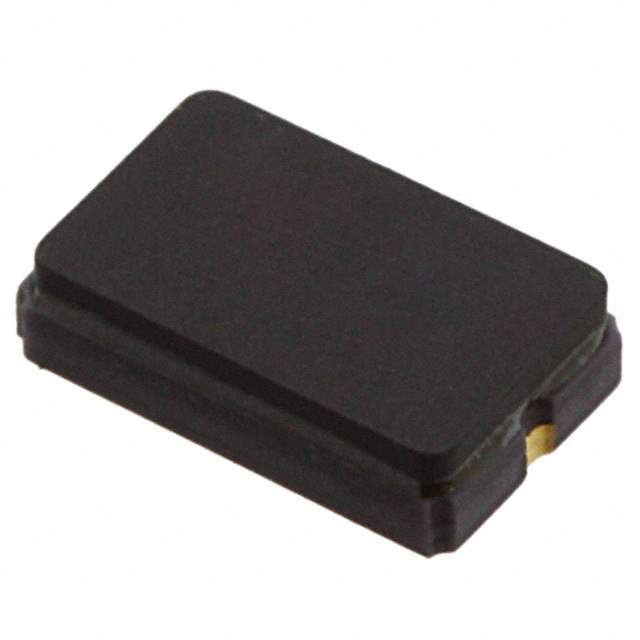

AA-16.000MALE-T Real Image
Same model may have multiple batches, images only for reference.

AA-16.000MALE-T

Part No AA-16.000MALE-T
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 16.0000MHZ 12PF SMD / 16 MHz ±30ppm Crystal 12pF 100 Ohms 2-SMD, No Lead
Datasheet
AA-16.000MALE-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr TXC CORPORATION
Series AA
Package Tape & Reel
Type MHz Crystal
Frequency 16 MHz
Frequency Stability ±150ppm
Frequency Tolerance ±30ppm
Load Capacitance 12pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.053" (1.35mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Other Names 887-1660-1,887-1660-2,AA16000MALET,887-1660-6
Standard Package 1,000
Win Source Part Number 1038971-AA-16.000MALE-T
Ultra Librarian 3D Model Ultra Librarian AA-16.000MALE-T CAD Model

Description

The AA-16.000MALE-T crystal oscillator is manufactured by TXC CORPORATION and has a frequency of 16 MHz.

  • Frequency: 16 MHz
  • ESR (Equivalent Series Resistance): 100 Ohms
  • Frequency Stability: ±150ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 12pF
  • Operating Temperature: -40°C ~ 125°C
  • Height: 0.053" (1.35mm)
  • Packaging: tape & reel
  • Standard Package: 1,000
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.60.0050
