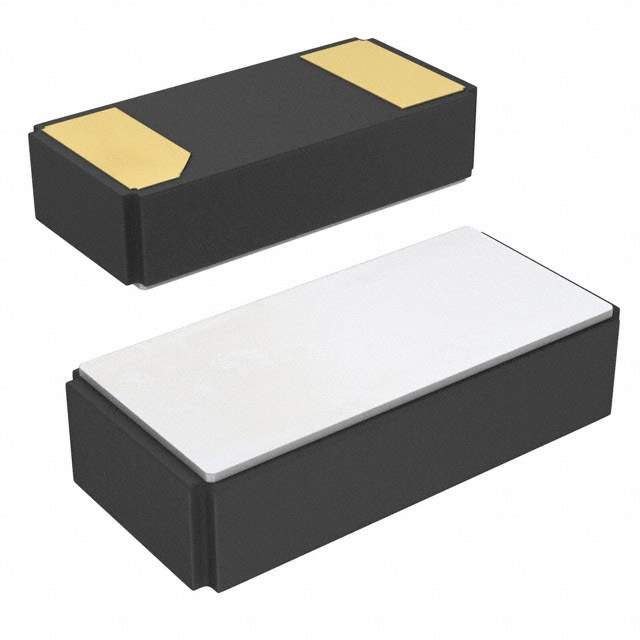

9H03200019 Real Image
Same model may have multiple batches, images only for reference.

9H03200019

Part No 9H03200019
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 32.7680KHZ 12.5PF SMD / 32.768 kHz ±20ppm Crystal 12.5pF 70 kOhms 2-SMD, No Lead
Datasheet
9H03200019 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr TXC CORPORATION
Series 9HT10
Package Tape & Reel (TR)
Product Status Obsolete
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 12.5pF
ESR (Equivalent Series Resistance) 70 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) 0.033" (0.85mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0010
Other Names Q10663420
Standard Package 3,000
Win Source Part Number 1038032-9H03200019
Ultra Librarian 3D Model Ultra Librarian 9H03200019 CAD Model

Description

The 9HT10 kHz Crystal (Tuning Fork) is a high-quality electronic component produced by TXC Corporation.

  • Category: Crystals, Oscillators, Resonators
  • Frequency: 32.768 kHz
  • ESR: 70 kOhms
  • Load Capacitance: 12.5pF
  • Operating Mode: Fundamental
  • Package/Case: 2-SMD, No Lead
  • Temperature Range: -40°C to 85°C
  • Status: Obsolete
