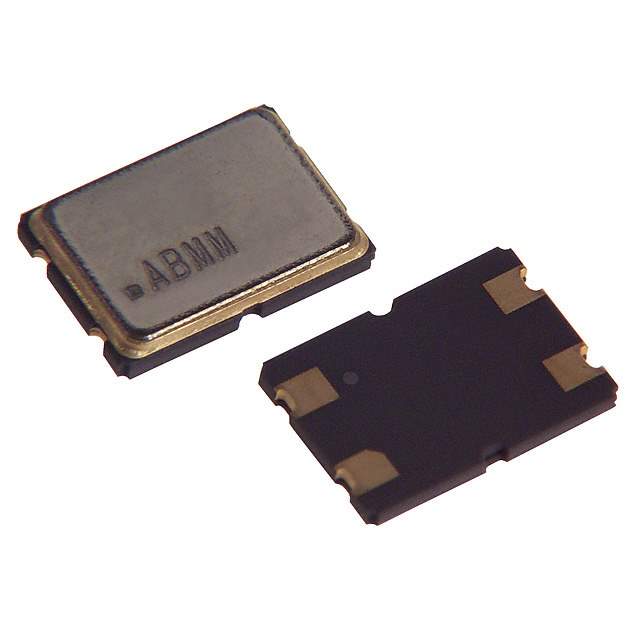

ABMM-20.000MHZ-B2-T Real Image
Same model may have multiple batches, images only for reference.

ABMM-20.000MHZ-B2-T

Part No ABMM-20.000MHZ-B2-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 20.0000MHZ 18PF SMD / 20 MHz ±20ppm Crystal 18pF 40 Ohms 4-SMD, No Lead
Datasheet
ABMM-20.000MHZ-B2-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABMM
Package Tape & Reel
Type MHz Crystal
Frequency 20 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.051" (1.30mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 535-9158-6,Q3140581AA,535-9158-1,535-9158-2,ABMM-20.000MHZB2-T,300-9158-2,300-9158-2-ND,300-9158-1-ND,ABMM20000MHZB2T,300-9158-1
Standard Package 1,000
Win Source Part Number 1078412-ABMM-20.000MHZ-B2-T
Ultra Librarian 3D Model Ultra Librarian ABMM-20.000MHZ-B2-T CAD Model

Description

The ABMM-20.000MHZ-B2-T is a 20MHz crystal oscillator manufactured by Abracon LLC.

  • Packaging: Tape and Reel
  • Standard Package: 1000
  • ESR: 40 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 18pF
  • Operating Mode: fundamental
  • Temperature Range: -20°C to 70°C
  • Dimension: 0.276” L x 0.197” W (7.00mm x 5.00mm)
  • RoHS Compliant: Yes
  • REACH: unaffected
