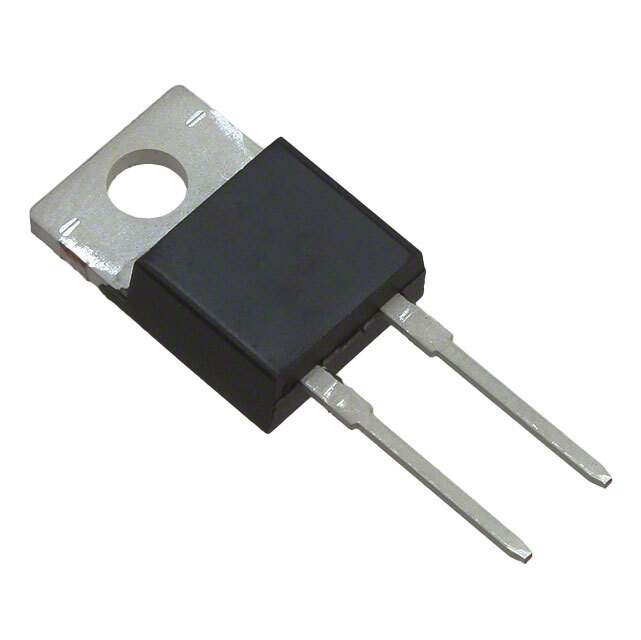

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Cree/Wolfspeed
Packaging Tube/Rail
Status Obsolete(EOL)
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 7A
Voltage - Forward (Vf) (Max) @ If 1.8V @ 4A
Speed(Frequency) No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage @ Vr 200μA @ 600V
Capacitance @ Vr, F 220pF @ 0V, 1MHz
Mounting Through Hole
Case / Package TO-220-2
Operating Temperature - Junction -55°C to 175°C
Win Source Part Number 000293-CSD04060A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CSD04060A CAD Model

Description

Overview

The CSD04060A is a reliable, efficient SiC Schottky diode optimized for a range of applications requiring reduced power loss and high-speed operation.

Features and Benefits

  • Ultra-fast recovery time
  • Reduced power consumption
  • High voltage and current ratings
  • Compact design for easy integration
  • Enhanced thermal performance

Applications

  • UPS systems
  • DC-DC converters
  • Induction heating
  • Electric vehicle charging stations
  • Telecom power supplies

Additional Details

With its ultra-fast recovery time, the CSD04060A significantly cuts down on switching losses, making it ideal for applications that demand high efficiency and reliability.
