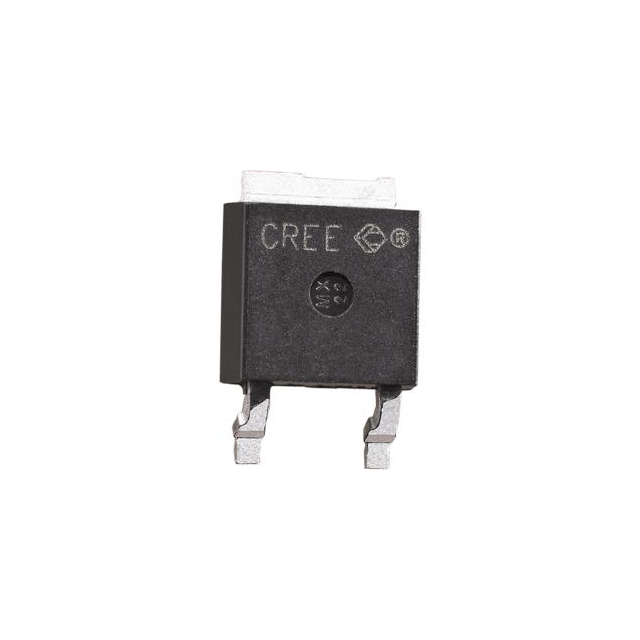

C6D08065E Real Image
Same model may have multiple batches, images only for reference.

C6D08065E

Part No C6D08065E
Manufacturer Cree/Wolfspeed
Catalog Diodes, Rectifiers - Single
Description GEN 6 650V 8 A SBD / Diode Silicon Carbide Schottky 650 V 29A Surface Mount TO-252-2
Datasheet
C6D08065E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer Wolfspeed, Inc.
Packaging Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 650 V
Current - Average Rectified (Io) 29A
Voltage - Forward (Vf) (Max) @ If 1.5 V @ 8 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 40 µA @ 650 V
Capacitance @ Vr, F 518pF @ 0V, 1MHz
Mounting Surface Mount
Case / Package TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package TO-252-2
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number C6D08065
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 1697-C6D08065E,1697-C6D08065ETR-ND,1697-C6D08065EDKRINACTIVE,1697-C6D08065ECTINACTIVE
Standard Package 75
Win Source Part Number 1324528-C6D08065E
Ultra Librarian 3D Model Ultra Librarian C6D08065E CAD Model

Description

The Wolfspeed C6D08065E is a silicon carbide Schottky diode used in discrete semiconductor products.

  • Voltage Rating: 650V
  • Average Rectified Current: 29A
  • Recovery Time: 0ns
  • Reverse Leakage Current: 40µA @ 650V
  • Package: TO-252-2
  • Mounting: Surface Mountable
