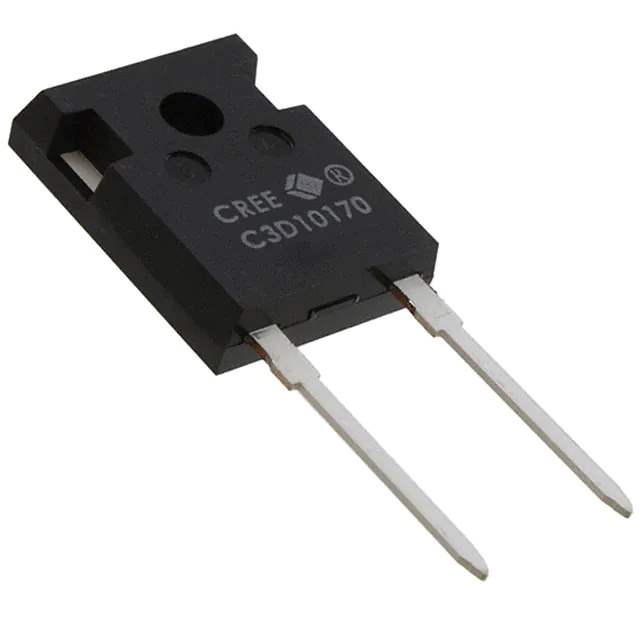

C3D10170H Real Image
Same model may have multiple batches, images only for reference.

C3D10170H

Part No C3D10170H
Manufacturer Cree/Wolfspeed
Catalog Diodes, Rectifiers - Single
Description DIODE SIL CARB 1.7KV 14.4A TO247
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Cree/Wolfspeed
Series Z-Rec®
Package Tube
Product Status Obsolete
Technology SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) 1700 V
Current - Average Rectified (Io) 14.4A
Voltage - Forward (Vf) (Max) @ If 2 V @ 10 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 60 µA @ 1700 V
Capacitance @ Vr, F 827pF @ 0V, 1MHz
Mounting Type Through Hole
Package / Case TO-247-2
Supplier Device Package TO-247-2
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number C3D10170
Standard Package 30 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 851307-C3D10170H
Ultra Librarian 3D Model Ultra Librarian C3D10170H CAD Model

Description

The C3D10170H is a SiC Schottky diode from Cree/Wolfspeed.

  • Series: Z-Rec®
  • Voltage Rating: 1700V
  • Average Rectified Current: 14.4A
  • Forward Voltage Drop: 2V @ 10A
  • Recovery Time: 0ns
  • Temperature Range: -55°C to 175°C
  • Mounting Type: Through Hole
  • Package: TO-247-2
