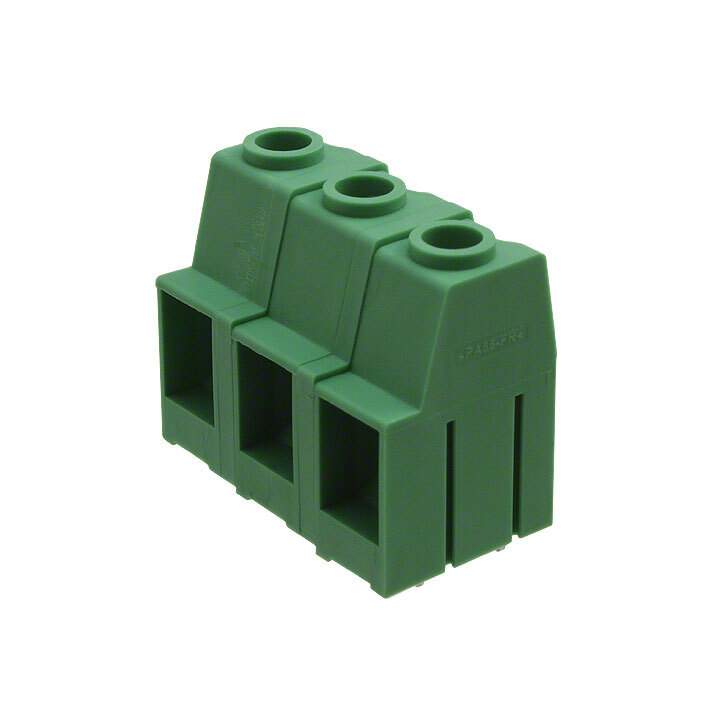

1929546 Real Image
Same model may have multiple batches, images only for reference.

1929546

Part No 1929546
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description TERM BLK 3P SIDE ENT 12.7MM PCB / 3 Position Wire to Board Terminal Block Horizontal with Board 0.500" (12.70mm) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Wire to Board
Manufacturer Phoenix Contact
Packaging Bulk
Number of Levels 1
Positions Per Level 3
Pitch 0.500" (12.70mm)
Mating Orientation Horizontal with Board
Current 60 A
Voltage 600 V
Wire Gauge 6-20 AWG
Mounting Through Hole
Wire Termination Screw - Rising Cage Clamp
Features Interlocking (Side)
Color Green
Housing Material Polyamide (PA), Nylon
Torque - Screw 1.2-1.5 Nm (10.6-13.3 Lb-In)
Screw Thread M4
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number MKDSP 10 HV/ 3-12.7,1929546-ND,277-9072,MKDSP10HV/3-12.7
Standard Package 50
Win Source Part Number 1332206-1929546
Ultra Librarian 3D Model Ultra Librarian 1929546 CAD Model

Description

Phoenix Contact offers a wire-to-board terminal block 1332206-1929546 with 3 positions per level and 1 level.

  • Positions per Level: 3
  • Level: 1
  • Wire Gauge: 6-20 AWG
  • Current: 60 A
  • Voltage: 600 V
  • Material: Polyamide (PA), Nylon
  • Color: Green
  • Mounting: Through-hole mountable
  • Wire Termination: Screw-rising cage clamp
  • Screw Thread: M4
  • Torque Screw: 1.2-1.5 Nm (10.6-13.3 Lb-In)
  • ECCN: EAR99
  • HTSUS Code: 8536.69.4040
